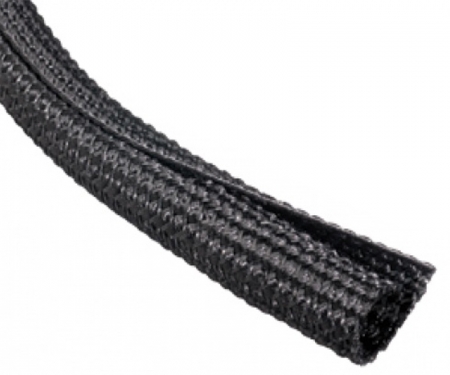

Techflex® Flexo® F6® Quiet Wrap Around Braided Cable Sleeving
Engineered to Reduce The Noise Associated With Wire Harnesses
0.0 / 5
F6 Quiet Wrap-Around Sleeving Features
- Reduces Noise From Vibration & Movement
- Cuts Easily With Hot Knife
- Very High Abrasion Resistance
- Opens Up To Fit Over Connectors
- Temperature Range: -103° to 257°F (-75° to 125°C.)
- Halogen Free - RoHS Compliant
- Resists Common Chemicals & Solvents
- 446°F / 230°C. Melt Temp.
Flexo F6 Quiet wrap around sleeving is specially engineered to reduce the noise associated with wire harnesses or cables installed in hard to reach areas such as door panels or dashboards. The special hybrid construction suppresses noise from loose harnesses moving against body or dash panels. F6 Quiet also has a soft and flexible feel, reminiscent of old style cotton loom, making it the perfect product for restoration projects. The wraparound construction is perfect when component or harness disassembly is impractical or impossible.For new wiring installations, or when building harnesses from scratch, our Flexo Noise Reduction sleeving offers the same protection and noise reduction qualities in an expandable sleeving product.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness ±0.005" | Bulk Spool | Box A | Box B | Available Colors | Lbs/ 100' |
| 1/4" 3/8" 1/2" 3/4" 1 1/4" | F6Q0.25BK F6Q0.38BK F6Q0.50BK F6Q0.75BK F6Q1.25BK | .04" .04" .04" .04" .04" | 2,000' 1,000' 760' 500' 250' | 200' 150' 150' 100' 75' | 100' 75' 75' 50' 25' | BK BK BK BK BK | 1.00 1.80 2.00 3.00 4.00 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL94 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 4 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | .21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 446°F/230°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
