Techflex® F360™ Braided Cable Sleeving
Full Coverage - Light Weight & Durable - 1/2" - 1" Dia Available
0.0 / 5
F360 Braided Sleeving Features
- Labor Effective Easy Installation
- Soft & Quiet In High Vibration Uses
- Cut & Abrasion Resistant
- Chemically Inert
- Halogen Free
- Retains Shape & Rigidity
- Operating Temperature Range: -94ºF to 257ºF (-70ºC to 125ºC).
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured as Round Not Flat

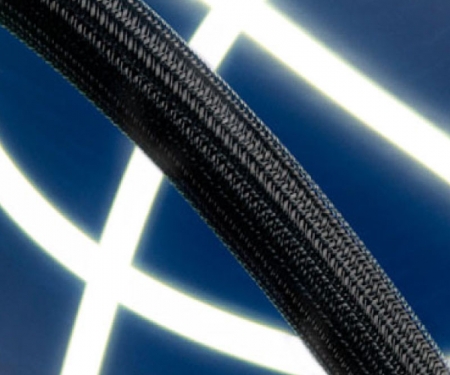

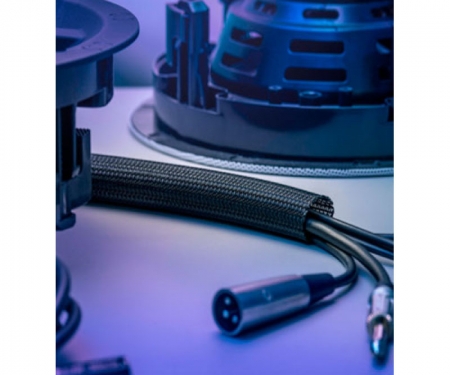

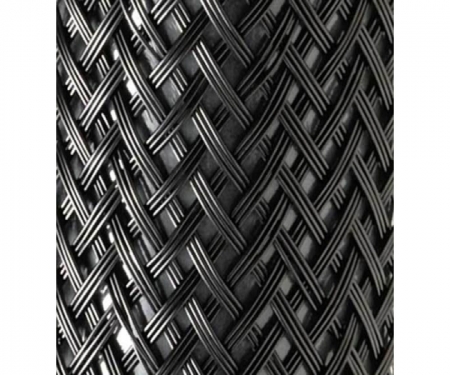

F360° is an innovative conduit designed to encase your wires with a flexible structure. F360's circular shape is lightweight yet extremely strong. Utilizing our now famous F6 style triaxial braid technology, this new design will solve situations that need additional security and tamper resistance. The full 360° degree enclosure makes a sturdy wire duct while still remaining breathable and light. Feeding wires through F360° is easy due to the ridged design. The beautifully finished bundle will maintain it's shape and add serious protection for a very long life.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Bulk | Box A | Box B | |||||
| 3/8" 1/2" 3/4" 1" 1 1/4" 1 3/8" 1 1/2" 2" | F360.38BK F360.50BK F360.75BK F3601.00BK F3601.25BK F3601.38BK F3601.50BK F3602.00BK | .028" .028" .028" .028" .028" .028" .040" .040" | 1,500' 1,200' 500' 400' 250 200' 150' 100' | 150' 150' 100' 100' 75' 75' 75' 50' | 75' 75' 50' 50' 25' 25' 25' 25' | 1 1 1 1 1 1 1 1 | 0.83 1.14 1.53 1.67 2.26 2.48 3.90 5.37 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .030 - .035 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6 - 10 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
F360° is an innovative conduit designed to encase your wires with a flexible structure. F360's circular shape is lightweight yet extremely strong. Utilizing our now famous F6 style triaxial braid technology, this new design will solve situations that need additional security and tamper resistance. The full 360° degree enclosure makes a sturdy wire duct while still remaining breathable and light. Feeding wires through F360° is easy due to the ridged design. The beautifully finished bundle will maintain it's shape and add serious protection for a very long life.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Bulk | Box A | Box B | |||||
| 3/8" 1/2" 3/4" 1" 1 1/4" 1 3/8" 1 1/2" 2" | F360.38BK F360.50BK F360.75BK F3601.00BK F3601.25BK F3601.38BK F3601.50BK F3602.00BK | .028" .028" .028" .028" .028" .028" .040" .040" | 1,500' 1,200' 500' 400' 250 200' 150' 100' | 150' 150' 100' 100' 75' 75' 75' 50' | 75' 75' 50' 50' 25' 25' 25' 25' | 1 1 1 1 1 1 1 1 | 0.83 1.14 1.53 1.67 2.26 2.48 3.90 5.37 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .030 - .035 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6 - 10 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
