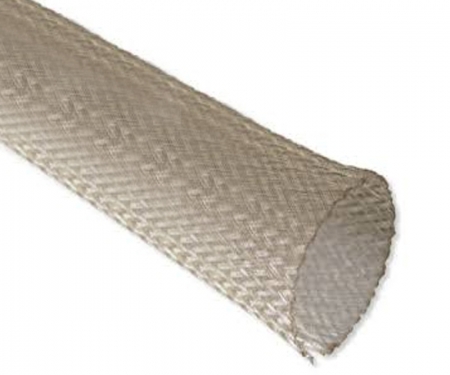

Bentley Harris® Expando® 686 DM Braided Cable Sleeving
Resistant to Flames, Acids, & Abrasion - By Bentley Harris®
0.0 / 5
Expando® 686 DM Features
- Aerospace-grade expandable braided sleeving stretches an additional 3 times its unfilled size to ensure a snug fit for bundling cables and making wire harnesses
- impervious to rot and mold, regardless of climate, ensuring long life to the product and eliminating the need for further investments
- Tightly woven yet highly breathable design will not trap heat or humidity, ensuring the longest life out of your cables and connected devices
- Patented PPS and PEEK dual-filament construction provides excellent resistance to abrasion, heat, oils, acid, sunlight, cleaning supplies, and other elements of hostile environments
- Non-halogenated production releases fewer toxic fumes in the event of a fire, minimizing potential health hazards and damage to nearby equipment
- Comes on a spool for easy mounting to a dispenser reel
- Highly flame retardant material is rated to VW-1 standards
- Will not rot under any circumstances, resulting in infinite shelf life and a one-time investment
- Does not require a hot knife for cutting; can be easily cut with scissors to maximize safety and minimize project costs
- CSA Filed: LR52852
- RoHS Compliant
Products Are Made To Order: Lead Times May Apply
Expando 686DM is crafted specifically in order to be insusceptible to weather, to be in full accordance with the rigorous requirements of the Aerospace industry. Our dynamic braided sleeving is crafted using the very utmost of durable materials, necessary as it has been ranked to Military and ASTM standards, guaranteeing that you will receive in it the full security you require.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Value |
| Operating Temperature Range | - | -70 C to +200 C (-94 F to +392 F) |
| Low Temperature Flexibility | MIL-DTL-23053E | -70 C |
| Flammability | UL 1441 FAR Part 25 | VW-1 Pass |
| Smoke Density | ASTM E-662 | Dmc = 2.3 |
| Oxygen Index | ASTM D 2863 | 36.50% |
| Hard Vacuum TML CVCM | ASTM E-595 | Pass |
| Fluid Resistance Jet Fuel JP-4 (MIL-T-5624) Hydraulic Fluid (MIL-H-5606) Lube Oil (MIL-I-7808) De-Ice Fluid (MIL-A-8243) Reference Oil #2 (ASTM D-471) Salt Water (O-S-1926) | MIL-DTL-23053 | No visible degradation |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Expando 686DM is crafted specifically in order to be insusceptible to weather, to be in full accordance with the rigorous requirements of the Aerospace industry. Our dynamic braided sleeving is crafted using the very utmost of durable materials, necessary as it has been ranked to Military and ASTM standards, guaranteeing that you will receive in it the full security you require.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Value |
| Operating Temperature Range | - | -70 C to +200 C (-94 F to +392 F) |
| Low Temperature Flexibility | MIL-DTL-23053E | -70 C |
| Flammability | UL 1441 FAR Part 25 | VW-1 Pass |
| Smoke Density | ASTM E-662 | Dmc = 2.3 |
| Oxygen Index | ASTM D 2863 | 36.50% |
| Hard Vacuum TML CVCM | ASTM E-595 | Pass |
| Fluid Resistance Jet Fuel JP-4 (MIL-T-5624) Hydraulic Fluid (MIL-H-5606) Lube Oil (MIL-I-7808) De-Ice Fluid (MIL-A-8243) Reference Oil #2 (ASTM D-471) Salt Water (O-S-1926) | MIL-DTL-23053 | No visible degradation |
