Newlink® Wall Mount Server Enclosures
6U to 27U Sizes - Locking Glass Front Door
0.0 / 5
Newlink® Wall Mount Server Enclosure Features
- Mounting: 19”
- Front Glass Door With Lock
- Solid Rear Door With Lock
- Removable Side Panels
- Fan Cooling Device Included
- Loading Capacity: 30kg / 66lbs
- Standard EIA 310 D
Wall-mount cabinets reduce floor space requirements and are the best option for the over crowded offices and where size do not justify a dedicated telecommunications room.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

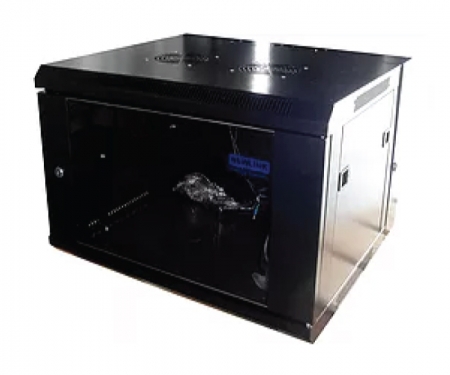

6-RU Wall Mount Cabinet
Dimensions: D: 21.50” x W: 23.50” x H: 14.50”
Mounting: 19”
Front Glass Door w/lock
Solid rear door w/lock
Removable side panels
Fan Cooling Device included
6 Rack Units
Weight: 45 lbs
Loading Capacity: 30kg / 66lbs
Standard EIA 310 D
9-RU Wall mount cabinet
Dimensions: D: 21.50: x W: 23.5018” x H: 19.75”
Mounting: 19”
Front Glass Door w/lock
Solid rear door w/lock
Removable side panels
Fan Cooling Device included
9 Rack Units
Weight: 52 lbs
Loading Capacity: 70lbs
Standard EIA 310 D
12-RU Wall mount cabinet
Dimensions: H 24” x W 23.5” x D 21”
Mounting: 19”
Front Glass Door w/Locks
Side panels
Fan Cooling Device
12 Rack Units
Weight: 63lbs
Standard EIA 310 D
15-RU Wall mount cabinet
Dimensions: H30” x W23 ½” x D21”
Mounting: 19”
Front Glass Door w/Locks
Side panels
Fan Cooling Device
15UR
Weight: 75lbs
Standard EIA 310 D
20RU Wall mount Enclosure
Dimensions: H 39” x W 23 ½” x D 21 ½”
Mounting: Standard 19”
Glass front door w/lock
Removable side panels
Solid back panel w/lock
2-Fan Cooling Device installed
20 RU
Unit Weight: 99 lbs (45 Kg)
Loading Capacity: 66 lbs (30 Kg)
Standard EIA 310 D
27RU Wall Mount Cabinet
Dimensions: H 51 1/4” x W 23 ½” x D 21 ½”
Mounting: Standard 19”
Glass front door w/lock
Removable side panels
Solid back panel w/lock
2-Fan Cooling Device installed
27UR
Unit Weight: 106 lbs
Loading Capacity: 30kg / 66lbs
Standard EIA 310 D
