Newlink® Extra Depth Economical Floor Enclosures
24U & 42U Sizes - Vented Front Door - 42" Depth
0.0 / 5
Newlink® Extra Depth Economical Floor Enclosure Features
- Vented Front Door With Lock
- Vented Rear Door With Lock
- Removable Side Panels
- 19” Mounting Uprights Painted, Square Holes, EIA Spacing w/ M6 Clip Nuts & Hardware.
- Standard EIA 310 D

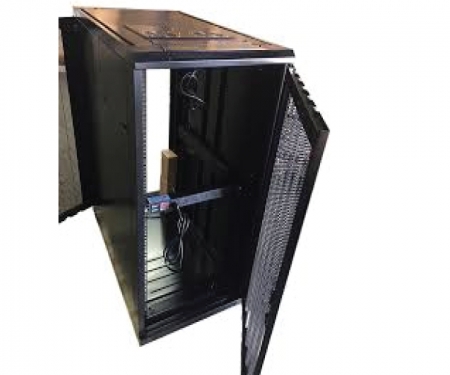

Newlink® Extra Depth Floor Enclosure is a unique all steel extra deep enclosure that is both strong and attractive. Our design allows us to maintain tighter tolerances for door clearance, better stability and superior heat dissipation. Comes fully assembled and includes two Turbo Fans and a power strip. Front and back doors are vented to keep networking equipment cool.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
47” (24RU) Standalone Cabinet, Vented Front Door and Back Door with locks. Extra Depth: 42.13”
Size: 47” H x 24” W x 42.13” D
Cabinet Weight: 165 lbs
Load Capacity: 1,760 lbs
Vented Front Door w/ lock
Vented Rear Door w/ Lock
Removable Side Panels
19” Mounting Uprights Painted, Square Holes, EIA Spacing w/ M6 Clip Nuts and Hardware.
LOAD CAPACITY: 1,760 lbs
FANS: 2 FANS INCLUDED
POWER STRIP: 6-outlet INCLUDED
Standard EIA 310 D
78" (42 UR) Standalone Cabinet, Vented Front and Back doors w/locks. Extra depth: 42.13”
External: 78”High x 24”Wide x 42.13” Depth.
Vented Front Door w/ lock
Vented Rear Door w/ Lock
Removable Side Panels
19” Mounting Uprights Painted, Square Holes, EIA Spacing w/ M6 Clip Nuts and Hardware.
CABINET WEIGHT: 330 LBS
LOAD CAPACITY: 800 Kg / 1760 lbs
FANS: 2 FANS INCLUDED
POWER STRIP: 6-outlet INCLUDED
Standard EIA 310 D
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Newlink® Extra Depth Floor Enclosure is a unique all steel extra deep enclosure that is both strong and attractive. Our design allows us to maintain tighter tolerances for door clearance, better stability and superior heat dissipation. Comes fully assembled and includes two Turbo Fans and a power strip. Front and back doors are vented to keep networking equipment cool.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
47” (24RU) Standalone Cabinet, Vented Front Door and Back Door with locks. Extra Depth: 42.13”
Size: 47” H x 24” W x 42.13” D
Cabinet Weight: 165 lbs
Load Capacity: 1,760 lbs
Vented Front Door w/ lock
Vented Rear Door w/ Lock
Removable Side Panels
19” Mounting Uprights Painted, Square Holes, EIA Spacing w/ M6 Clip Nuts and Hardware.
LOAD CAPACITY: 1,760 lbs
FANS: 2 FANS INCLUDED
POWER STRIP: 6-outlet INCLUDED
Standard EIA 310 D
78" (42 UR) Standalone Cabinet, Vented Front and Back doors w/locks. Extra depth: 42.13”
External: 78”High x 24”Wide x 42.13” Depth.
Vented Front Door w/ lock
Vented Rear Door w/ Lock
Removable Side Panels
19” Mounting Uprights Painted, Square Holes, EIA Spacing w/ M6 Clip Nuts and Hardware.
CABINET WEIGHT: 330 LBS
LOAD CAPACITY: 800 Kg / 1760 lbs
FANS: 2 FANS INCLUDED
POWER STRIP: 6-outlet INCLUDED
Standard EIA 310 D
