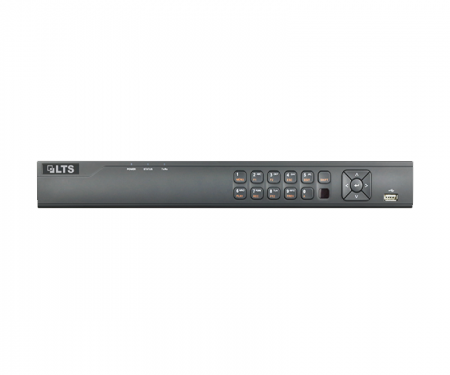

Platinum Pro Level 16 Channel HD-TVI 4.0 DVR

16 channel Dvr, with support up to 6mp HD-TVI input with 4k display

0.0 / 5

(0)

Platinum Pro Level 16 Channel HD-TVI 4.0 DVR features

  • H.265/H.265+ 16 Channel Video Recorder
  • 4/1 RCA  I/O
  • 16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
  • 16 channels support up to 5MP HD-TVI input
  • Up to 2-ch 6MP IP cameras input
  • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
  • Up to 4k HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • 2 USB 2.0
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology TVI DVR
Featured Product No
Specifications
VIDEO/AUDIO INPUT
Video Compression H.265+/H.265/H.264 Zip+/H.264
Video Input

16ch

BNC (1.0 Vp-p, 75 Ω), supporting coaxitron connection
IP Input  2-ch, Up to 6MP Resolution
HDTVI Input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
Audio Compression  G.711u
Audio Input  4CH, RCA (2.0 Vp-p, 1 kΩ)
Two-Way Audio Input  1CH, RCA (2.0 Vp-p, 1 kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output

VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution  5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame Rate

Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)

Sub-stream: WD1/4CIF/CIF@25fps (P)/30fp s (N)
Video Bit Rate  32 Kbps-10 Mbps
Audio Output  1CH, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream  Support
Stream Type  Video, Video & Audio
Synchronous Playback  16CH
NETWORK
Remote Connections  128
Network Protocols  TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA  2 SATA
Capacity  Up to 8TB each
EXTERNAL INTERFACE
Network interface  1:10M / 100M self-adaptive Ethernet interface
Serial interface  RS-4 85 (half-duplex)
USB Port  Fr ont panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/4
GENERAL
Power supply DC12V
Consumption  ≤ 25W
Working temperature  -10 °C ~ +55 °C(14°F - 131°F)
Working humidity  10% ~ 90%
Chassis 1U
Dimensions (WxDxH)  380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight  ≤2Kg (4.4lb)
