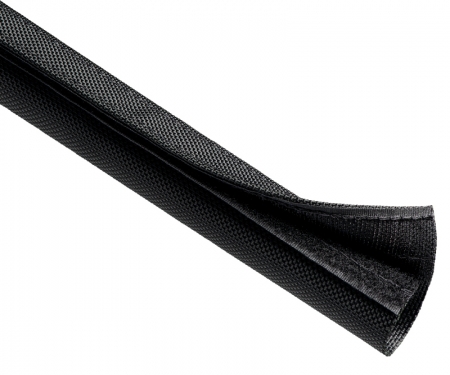

Techflex® Dura Wrap Heavy Duty Braided Cable Sleeving
Side Entry Sleeving With Hook & Loop Closure - 1" - 8" Dia Available
0.0 / 5
Dura Wrap Braided Sleeving Features
- Material: Woven Ballistic Nylon
- Color: Black
- Cuts Easily With Scissors
- .026" Wall Thickness

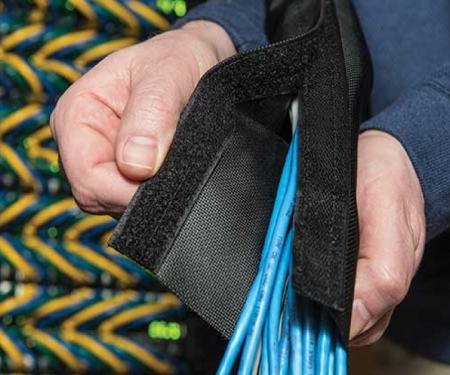

- Easy Retro Fit Installation
- Protects Exposed Applications from UV Damage
- Extremely Abrasion and Cut Resistant
- Operating Temps: -76°F to 302°F (-60°C to 150°C)
- Tightly Woven Ballistic Nylon Construction
- Resists Common Chemicals & Solvents
- Tightly Woven for Full Coverage and Protection
- No Damage After 8,500 Abrasion Cycles
- Deflects High Pressure Hose Ruptures
- Melt Temp: 509°F / 265°C
- Inside Diameters Are Measured as Round Not Flat
Require Splice Free? Please Call 1-877-284-7760

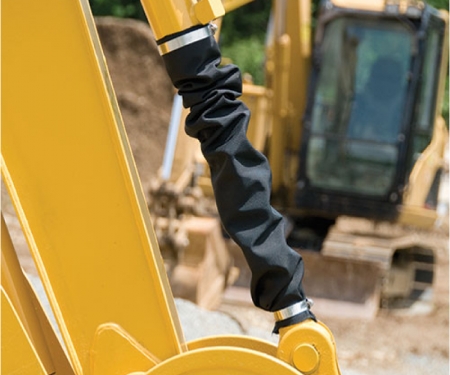

Dura Wrap heavy duty braided sleeving is the answer to organizing and controlling wires, cables, and hoses that are subjected to constant and extreme use. The flexible sleeve is made from tightly woven ballistic Nylon® with an aggressive, industrial-strength hook and loop closure. Dura Wrap heavy duty braided sleeving is used on wires to keep them together, on hoses and cables to prevent abrasion damage, or on chains to keep them from ruining expensive finished surfaces. Dura Wrap is extremely flexible and easy to install over single or multiple hoses. In the event of a hose rupture, the high-strength sleeving helps prevent high-pressure fluid from becoming a danger to equipment operators and other personnel.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Hook & Loop Width | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | ||||||
| 1" 1 1/2" 2" 2 1/2" 3" 3 1/2" 4" 4 1/2" 6" 8" | DWN1.00BK DWN1.50BK DWN2.00BK DWN2.50BK DWN3.00BK DWN3.50BK DWN4.00BK DWN4.50BK DWN6.00BK DWN8.00BK | .026" .026" .026" .026" .026" .026" .026" .026" .026" .026" | 1" 1" 1" 1" 1" 1" 1" 1" 1" 1" | 150' 150' 150' 150' 150' 150' 150' 150' 150' 50' | 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK BK | 5.4 7.0 8.2 9.4 11.4 12.6 14.0 15.4 19.2 25.0 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | 0 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .020 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 19 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.12 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -60°F/-51°C |
| Maximum Continuous (MIL-I-23053) | 200°F/93°C |
| Melt (ASTM D-2117) | 410°F/210°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Dura Wrap heavy duty braided sleeving is the answer to organizing and controlling wires, cables, and hoses that are subjected to constant and extreme use. The flexible sleeve is made from tightly woven ballistic Nylon® with an aggressive, industrial-strength hook and loop closure. Dura Wrap heavy duty braided sleeving is used on wires to keep them together, on hoses and cables to prevent abrasion damage, or on chains to keep them from ruining expensive finished surfaces. Dura Wrap is extremely flexible and easy to install over single or multiple hoses. In the event of a hose rupture, the high-strength sleeving helps prevent high-pressure fluid from becoming a danger to equipment operators and other personnel.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Hook & Loop Width | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | ||||||
| 1" 1 1/2" 2" 2 1/2" 3" 3 1/2" 4" 4 1/2" 6" 8" | DWN1.00BK DWN1.50BK DWN2.00BK DWN2.50BK DWN3.00BK DWN3.50BK DWN4.00BK DWN4.50BK DWN6.00BK DWN8.00BK | .026" .026" .026" .026" .026" .026" .026" .026" .026" .026" | 1" 1" 1" 1" 1" 1" 1" 1" 1" 1" | 150' 150' 150' 150' 150' 150' 150' 150' 150' 50' | 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK BK | 5.4 7.0 8.2 9.4 11.4 12.6 14.0 15.4 19.2 25.0 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | 0 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .020 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 19 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.12 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -60°F/-51°C |
| Maximum Continuous (MIL-I-23053) | 200°F/93°C |
| Melt (ASTM D-2117) | 410°F/210°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
