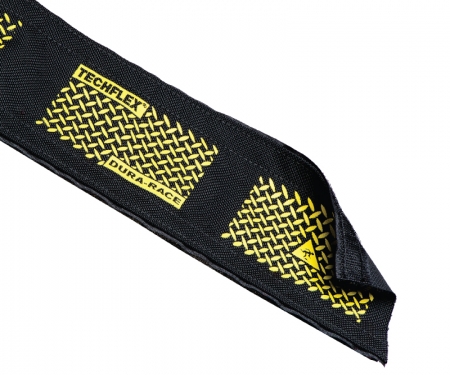

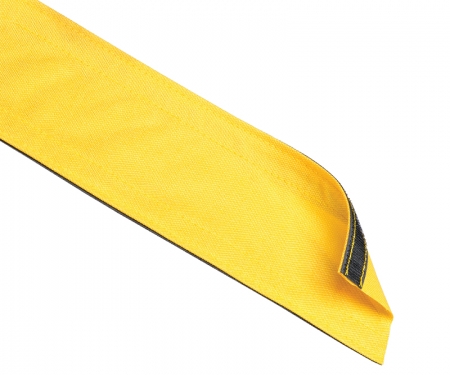

Dura Race Carpet Cord Covers
Available In 3", 4" & 5" Widths - 25' to 150' Rolls - 7 colors
0.0 / 5
Dura-Race Carpet Cord Covers Features
- Tightly Woven Ballistic Nylon® Construction
- Heavy Duty Hook Closure for Carpet Installation
- Repels Liquids
- Resists and Prevents Damage from UV, Abrasion, & Chemicals

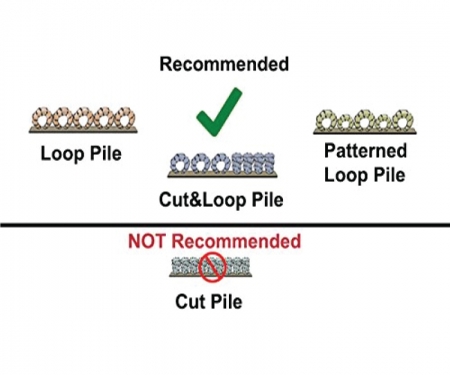

Note: Not Compatible With Cut Pile Carpets

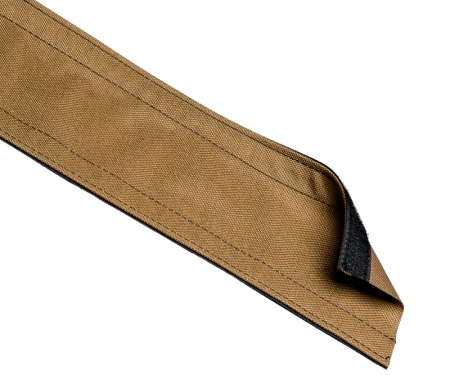

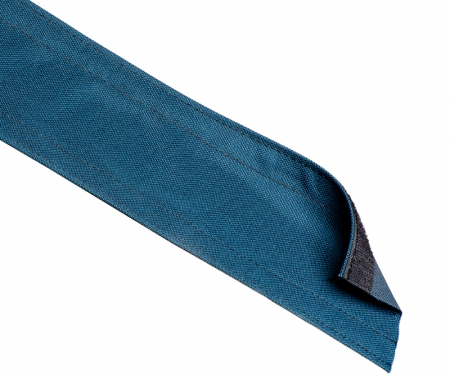

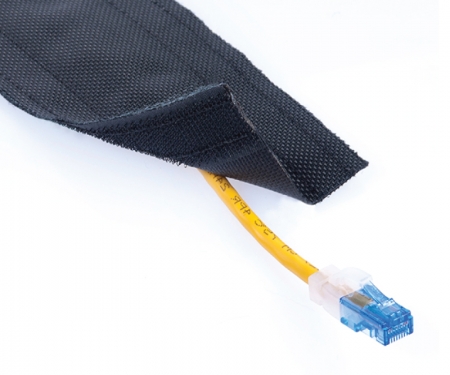

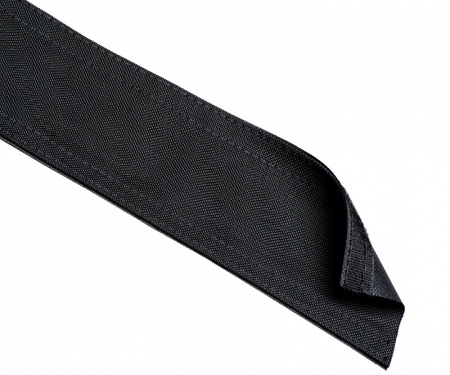

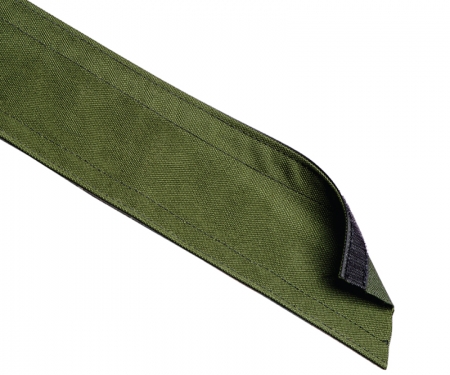

Dura Race carpet cord covers are the solution for hiding and protecting wires that are exposed to carpeted areas. Dura Race is braided from a tightly woven ballistic Nylon and has industrial strength hook closure, this covering will adhere to most industrial and high traffic carpeting, making it easy to lay over wires, cables or hoses keeping them protected from abrasion. Dura Race tightly holds the application close to the carpeting, avoiding trips or falls on free lying wires. Dura Race provides greater abrasion resistance and water repellency compared to other Nylon® sleeves. Dura Race is available in 7 colors to meet your needs.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 3" 4" 5" | DRN3.00 DRN4.00 DRN5.00 | .012" .012" .012" | 150' 150' 150' | 25' 25' 25' | 6 (No SS) 7 7 | 4.29 5.26 7.00 |
| Physical Properties | |

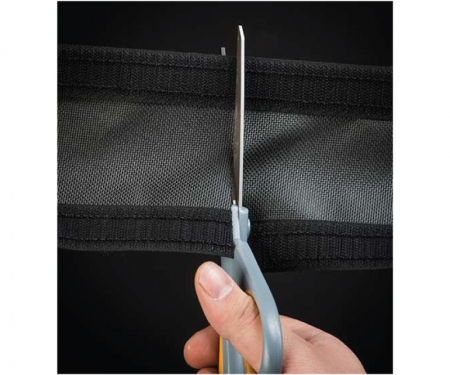

| Recommended Cutting | Scissor |
| Colors | 7 |
| Wall Thickness | .012 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.13 |
| Moisture Absorption % (ASTM D-570) | 2.7 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 4 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -60°F/-51°C |
| Maximum Continuous (MIL-I-23053) | 200°F/93°C |
| Melt (ASTM D-2117) | 410°F/374°C |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
