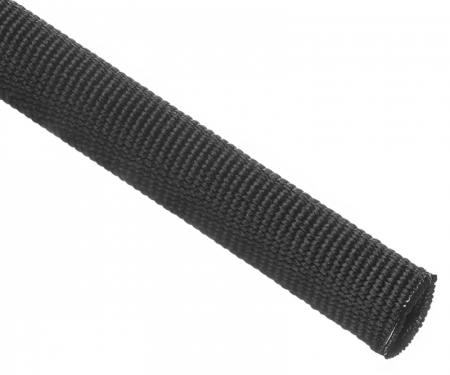

Techflex® Dura Flex Pro Heavy Braided Cable Sleeving
Woven Nylon Construction - Withstands 13,000 Abrasion Test Cyles
0.0 / 5
Dura Flex Pro Sleeving Features
- Color: Black
- Cuts Easily with Scissors
- 80 Mil Wall Thickness
- Professional Grade Construction
- Protects Exposed Applications from UV Damaged
- Extremely Abrasion and Cut Resistant
- Operating Temps: -49°F to 248°F(-45°C to 120°C)
- Asbestos/Halogen Free - RoHS Compliant
- Resists Common Chemicals & Solvents
- No Damage After 13,000 Abrasion Cycles
- Deflects High Pressure Hose Reptures
- ISO6945 Certified
- Melt Temp: 410°F / 210°C
- Inside Diameters Are Measured as Round Not Flat

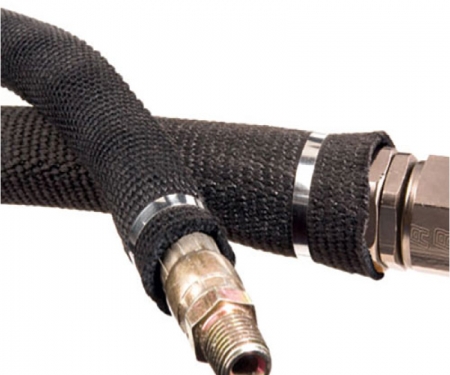

Dura-Flex Pro provides tough hose protection two ways. First, per the ISO 6945 specification, Dura flex Pro's unique 80 mil thick tubular weave design will withstand up to 13,000 abrasion cycles without any wear-through at any location. Additionally, the exceptionally smooth inner wall provides easy installation and minimizes any internal abrasion problems. The tightly woven Nylon construction is extremely flexible and resists chemical and ultraviolet degradation. Dura flex Pro heavy duty braided sleeving is perfect for industrial and construction applications where outstanding hose protection is needed. Dura-Flex Pro cuts cleanly with a scissor, and installs quickly and easily.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | |||||
| 0.75" 0.93" 1.13" 1.25" 1.35" 1.43" 1.63" 1.81" 2.19" 2.63" 2.88" 3.13" 3.38" 3.63" 4.00" | DPN0.75BK DPN0.93BK DPN1.13BK DPN1.25BK DPN1.35BK DPN1.43BK DPN1.63BK DPN1.81BK DPN2.19BK DPN2.63BK DPN2.88BK DPN3.13BK DPN3.38BK DPN3.63BK DPN4.00BK | .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" | 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 50' 50' 50' 50' | 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK BK BK BK BK BK BK | 4.43 5.51 7.15 7.44 8.02 8.32 9.53 10.71 12.31 14.83 17.30 18.04 20.11 21.60 23.52 |
| Physical Properties | |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .08 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.7 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 3 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 410°F/210°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Dura-Flex Pro provides tough hose protection two ways. First, per the ISO 6945 specification, Dura flex Pro's unique 80 mil thick tubular weave design will withstand up to 13,000 abrasion cycles without any wear-through at any location. Additionally, the exceptionally smooth inner wall provides easy installation and minimizes any internal abrasion problems. The tightly woven Nylon construction is extremely flexible and resists chemical and ultraviolet degradation. Dura flex Pro heavy duty braided sleeving is perfect for industrial and construction applications where outstanding hose protection is needed. Dura-Flex Pro cuts cleanly with a scissor, and installs quickly and easily.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | |||||
| 0.75" 0.93" 1.13" 1.25" 1.35" 1.43" 1.63" 1.81" 2.19" 2.63" 2.88" 3.13" 3.38" 3.63" 4.00" | DPN0.75BK DPN0.93BK DPN1.13BK DPN1.25BK DPN1.35BK DPN1.43BK DPN1.63BK DPN1.81BK DPN2.19BK DPN2.63BK DPN2.88BK DPN3.13BK DPN3.38BK DPN3.63BK DPN4.00BK | .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" .08" | 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 50' 50' 50' 50' | 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK BK BK BK BK BK BK | 4.43 5.51 7.15 7.44 8.02 8.32 9.53 10.71 12.31 14.83 17.30 18.04 20.11 21.60 23.52 |
| Physical Properties | |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .08 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.7 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 3 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 410°F/210°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
