Techflex® Dura Flex Heavy Duty Braided Cable Sleeving
Industrial Hose & Cable Protection for Harsh Environments
0.0 / 5
Duraflex Heavy Duty Sleeving Features
- Color: Black
- Cuts Easily With Scissors
- .045" Wall Thickness Resists Snagging
- Economical General Purpose Protection
- Protects Exposed Applications from UV Damage
- Extremely Abrasion & Cut Resistant
- Operating Temps: -49°F to 248°F (-45°C to 120°C)
- Asbestos Free - RoHS Compliant
- Resists Common Chemicals, Gasoline, Salt & Solvents
- Tightly Woven for Full Coverage & Protection
- No Damage After 3,500 Abrasion Test Cycles
- Deflects High Pressure Hose Ruptures
- Melt Temp: 410°F/210°C
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat

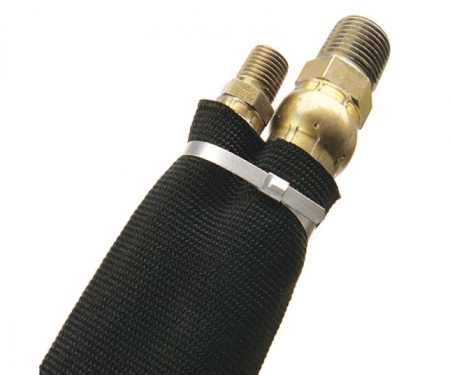

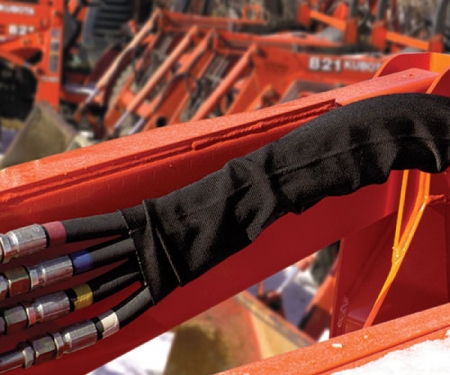

The tightly woven Nylon® makes Dura-Flex braided sleeving the perfect solution for hose & cable protection. The .09 inch wall thickness will protect cables, hoses and ropes from weather, sunlight and abrasion damage. When installed over uncoated cable or chains, Dura Flex heavy-duty braided sleeving will prevent scraping, chafing and contact damage to painted or other fragile surfaces. Dura flex heavy duty braided sleeving is resistant to chemicals, UV damage and rot, and is suitable for continuous outdoor use under all weather conditions. The flexible sleeving cuts with a scissor and the tight construction slides easily over any application. Dura flex heavy duty sleeving contains no asbestos and is RoHS compliant.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Maxi Coil | Bulk Spool | Shop Spool | |||||
| 0.71" 0.83" 0.92" 1.00" 1.13" 1.25" 1.34" 1.59" 1.75" 2.07" 2.38" 2.54" 2.86" 3.34" 3.66" | DFN0.71BK DFN0.83BK DFN0.92BK DFN1.00BK DFN1.13BK DFN1.25BK DFN1.34BK DFN1.59BK DFN1.75BK DFN2.07BK DFN2.38BK DFN2.54BK DFN2.86BK DFN3.34BK DFN3.66BK | .045" .045" .045" .045" .045" .045" .045" .045" .045" .045" .045" .045" .045" .045" .045" | 300' 300' 300' 300' 300' 300' 300' 300' 300' 300' 300' 300' 300' 300' 300' | 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 50' 50' | 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 25' 25' | BK BK BK BK BK BK BK BK BK BK BK BK BK BK BK | 2.57 2.58 3.22 3.66 4.18 4.49 4.84 5.37 6.13 7.26 8.28 8.98 9.89 11.59 12.25 |
| Physical Properties | |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .045 |
| Abrasion Resistance | High |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.7 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 3 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 410°F/210°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
