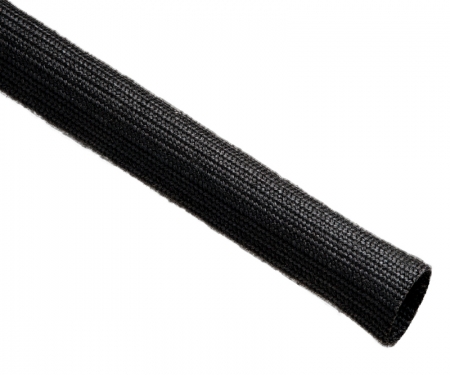

Techflex® Dura Braid Heavy Duty Braided Cable Sleeving
The Most Abrasion Durable Sleeving Ever Made - 1/2" - 1-1/2" Diameters
0.0 / 5
Dura Braid Heavy Duty Sleeving Features
- Color: Black
- Provides 50% More Wear Life Than The Industry Standard
- Resists Snagging
- Prevents Damage From UV, Gasoline, Engine Chemicals & Salt
- Resists Cut, Abrasion & Penetration
- Flexible & Economical General Protection
- Deflects High Pressure Hose Ruptures
- Halogen Free
- Inside Diameters Are Measured as Round Not Flat

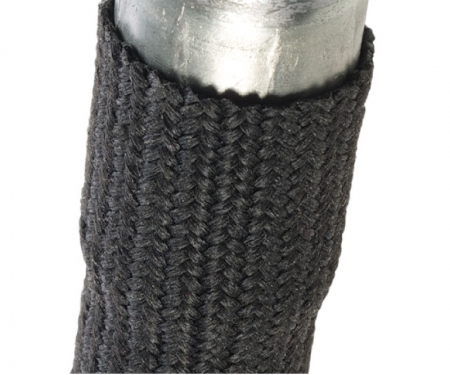

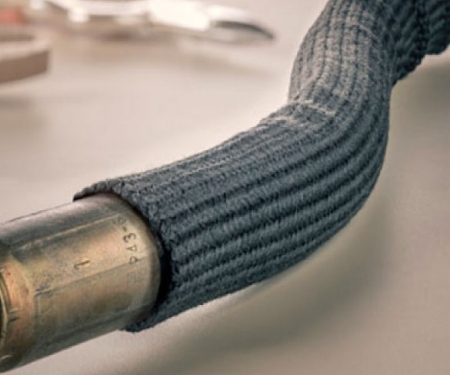

Dura Braid is more flexible, easier to fit on applications and has no seam on its axis. The result is a continuous seamless and beautiful product that will protect your hoses and wires even better than our original woven Dura Flex product. In side-by-side comparisons our new Dura Braid provides 50% more wear life than the industry standard hose protection sleeves. This new technology hose guard wears like iron with help from our new and exclusive polymeric textile infusion process. This is the first product of its kind and it will set a new standard in the hose guard industry.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | |||||
| 1/2" 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" 2 3/16" | DBN0.50BK DBN0.63BK DBN0.75BK DBN0.88BK DBN1.00BK DBN1.25BK DBN1.50BK DBN2.19BK | .064" .064" .064" .064" .064" .064" .064" .064" | 100' 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' 50' | Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) | 3.1 3.2 4.0 4.6 4.6 5.7 5.3 8.3 |
| Physical Properties | |
| Recommended Cutting | Scissors |
| Colors | 1 |
| Wall Thickness | .064 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | 2.7 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 410°F/210°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Dura Braid is more flexible, easier to fit on applications and has no seam on its axis. The result is a continuous seamless and beautiful product that will protect your hoses and wires even better than our original woven Dura Flex product. In side-by-side comparisons our new Dura Braid provides 50% more wear life than the industry standard hose protection sleeves. This new technology hose guard wears like iron with help from our new and exclusive polymeric textile infusion process. This is the first product of its kind and it will set a new standard in the hose guard industry.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | |||||
| 1/2" 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" 2 3/16" | DBN0.50BK DBN0.63BK DBN0.75BK DBN0.88BK DBN1.00BK DBN1.25BK DBN1.50BK DBN2.19BK | .064" .064" .064" .064" .064" .064" .064" .064" | 100' 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' 50' | Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) Black (BK) | 3.1 3.2 4.0 4.6 4.6 5.7 5.3 8.3 |
| Physical Properties | |
| Recommended Cutting | Scissors |
| Colors | 1 |
| Wall Thickness | .064 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | 2.7 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 410°F/210°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
