Dunbar® 2:1 Diesel Resistant Heat Shrink Tubing

Available in 1/8" - 1-1/2" Diameters

Dunbar® Diesel Resistant Heat Shrink Features

Highly Resistant To Aviation Fuels, Diesel Fuels, and Hydraulic Oils
Continuous Operating Temperature: -75ºC (-103ºF) to 150ºC (302ºF)
Flammability: ASTM D2671 Procedure B
4 mm Wall Thickness For Great Abrasion Resistance
AMS-DTL-23053/16 (Formerly MIL-DTL-23053/16)
RoHS Compliant
Cross Reference To Other Manufacturers: Raychem: DR-25; Sumitomo R120;
Canusa CDR625
Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT.

See More Technical Specifications

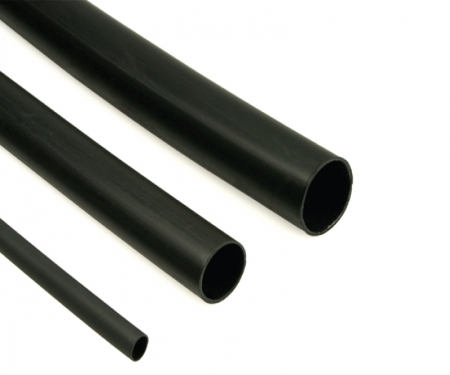

Dunbar® Diesel resistant heat shrink tubing is made with flexible elastomer polyolefin tubing and is engineered to provide high resistance to these types of fluids. This heavy-duty automotive heat shrink tubing also protects your cables, wire harnesses from abrasive elements that could potentially cause damage. Our diesel-resistant heat-shrink is rated for military applications. Need a product to protect your wires or cables, and other electrical or mechanical components from diesel along with other aviation and hydraulic lubricating fluids? Look no more. For more detailed specifications, please click on the Specfications Tab.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

**Specification Values**
Properties			Methods	Values
Physical	Unaged	Tensile Strength	ASTM D412	Min. 1700 psi
		Elongation		Min. 250%
		Tensile strength @100% Elongation		Max. 1500 psi
	Aged	Tensile strength	160℃/168 hrs	Min. 1500 psi
	Aged	Elongation	160℃/168 hrs	Min. 200%
	Fluid Resist.	Tensile strength	24℃/24 hrs 6 Fluids	Min. 1500 psi
		Elongation		Min. 200%
		Dielectric strength		Min. 200V/mil
	Low temperature flex		-65℃x4hrs	No cracks
	Heat shock		200℃x4hrs	No cracks, flowing, or dripping
	Specific gravity		ASTM D792	Max. 1.5
Electrical	Dielectric strength		ASTM D2671	Min. 300V / mil
Electrical	Volume resistivity		ASTM D876	Min. 1x10⁹Ω - cm
Chemical	Copper corrosion		275℃/16hrs	No corrosion
	Fungus resistance		ASTM G21	Rating less than 1
	Water Absorption		ASTM D570	Max. 2.0
	Flammability		ASTM D2671	Pass

**Product Dimensions Minimum Shrink Temperature: 135℃**
Size	Expanded		Recovered				Standard Spool Length
Size	Internal Diameter (Minimum) (D)		Internal Diameter (Maximum) (D)		Minimum Wall Thickness (t)		Standard Spool Length
Inch Size	in.	mm	in.	mm	in.	mm	Ft.
1/8"	0.125	3.2	0.062	1.6	0.030	0.76	500
3/16"	0.188	4.8	0.093	2.4	0.033	0.84	250
1/4"	0.250	6.4	0.125	3.2	0.035	0.89	250
3/8"	0.375	9.6	0.187	4.8	0.040	1.02	100
1/2"	0.500	12.8	0.250	6.4	0.048	1.22	100
3/4"	0.750	19.3	0.375	9.5	0.057	1.45	100
1"	1.000	25.4	0.500	12.7	0.070	1.78	100
1-1/4"	1.250	31.8	0.712	18.1	0.086	2.20	100
1-1/2"	1.500	38.1	0.858	21.8	0.094	2.41	100

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items

Item Description

Quantity

Search:

SKU:

Quantity:

Contact Information

Full Name

E-Mail Address

Phone

Company

Shipping Country

Postal / Zip Code

Urgency

Message

WARNING:
Products may contain materials listed under Prop 65 Enforcement Act. Click Here to read more.

Details

Product Details

Specifications

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

**Specification Values**
Properties			Methods	Values
Physical	Unaged	Tensile Strength	ASTM D412	Min. 1700 psi
		Elongation		Min. 250%
		Tensile strength @100% Elongation		Max. 1500 psi
	Aged	Tensile strength	160℃/168 hrs	Min. 1500 psi
	Aged	Elongation	160℃/168 hrs	Min. 200%
	Fluid Resist.	Tensile strength	24℃/24 hrs 6 Fluids	Min. 1500 psi
		Elongation		Min. 200%
		Dielectric strength		Min. 200V/mil
	Low temperature flex		-65℃x4hrs	No cracks
	Heat shock		200℃x4hrs	No cracks, flowing, or dripping
	Specific gravity		ASTM D792	Max. 1.5
Electrical	Dielectric strength		ASTM D2671	Min. 300V / mil
Electrical	Volume resistivity		ASTM D876	Min. 1x10⁹Ω - cm
Chemical	Copper corrosion		275℃/16hrs	No corrosion
	Fungus resistance		ASTM G21	Rating less than 1
	Water Absorption		ASTM D570	Max. 2.0
	Flammability		ASTM D2671	Pass

**Product Dimensions Minimum Shrink Temperature: 135℃**
Size	Expanded		Recovered				Standard Spool Length
Size	Internal Diameter (Minimum) (D)		Internal Diameter (Maximum) (D)		Minimum Wall Thickness (t)		Standard Spool Length
Inch Size	in.	mm	in.	mm	in.	mm	Ft.
1/8"	0.125	3.2	0.062	1.6	0.030	0.76	500
3/16"	0.188	4.8	0.093	2.4	0.033	0.84	250
1/4"	0.250	6.4	0.125	3.2	0.035	0.89	250
3/8"	0.375	9.6	0.187	4.8	0.040	1.02	100
1/2"	0.500	12.8	0.250	6.4	0.048	1.22	100
3/4"	0.750	19.3	0.375	9.5	0.057	1.45	100
1"	1.000	25.4	0.500	12.7	0.070	1.78	100
1-1/4"	1.250	31.8	0.712	18.1	0.086	2.20	100
1-1/2"	1.500	38.1	0.858	21.8	0.094	2.41	100
