Wire Trak® Corner Duct Cable Raceway Wall Cord Covers
3 Sizes Available - 5 Ft Lengths - Raceways With Extra Space
0.0 / 5
Corner Duct Raceway Features
- Triangular Design Fits Into Corner of Walls to Hide Cables
- Paintable PVC to Match Wall Color
- Easy To Install
- Snap On Cover Lid
- Self Sticking Adhesive Backing
- 3 different Sizes Available
Our line of corner ducts includes accessories such as pre-applied adhesive backing, fittings, inside and outside corners, and tee reducers so your wire management systems can be 100% customized. All parts are made of strong, durable, lightweight, UL 94-VO compliant PVC that is also paintable (Latex) to perfectly match walls, ceilings, and even baseboards. Custom colors are available upon request. Minimums apply. Long-lasting materials Parts made from a UL V0-94 compliant flame resistant PVC.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

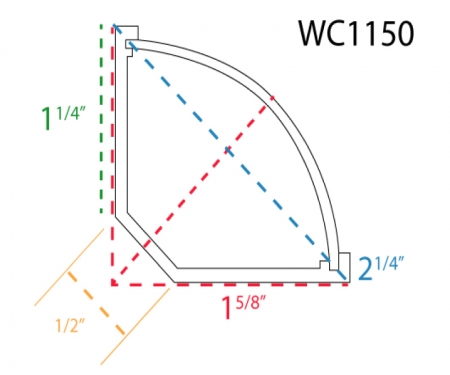

| Size | WC1075 | WC1150 | WC1250 |
| A (Inch) | 1.062 | 2.187 | 2.75 |
| B (Inch) | 0.563 | 0.813 | 1.094 |
| C (Inch) | 0.065 | 0.065 | 0.7 |
| Tape Width (Inch) | 0.5 | 0.75 | 0.75 |
| RACEWAY MODEL NO. | WC1150 | ||
|---|---|---|---|
| AREA OF RACEWAY (Sq. In.) | 1.41 | ||
| Wire Type | Wire Dia.(In.) | Wire Area (Sq. In.) | |
| Building Wire THHN | |||
| 14AWG | 0.108 | 0.0092 | 15 |
| 12 AWG | 0.126 | 0.0125 | 11 |
| 10 AWG | 0.17 | 0.0227 | 6 |
| Signal Wire UL Style 1061 300 Volt, 80 C* | |||
| 18 AWG | 0.066 | 0.0034 | 165 |
| 20 AWG | 0.066 | 0.0028 | 200 |
| 22 AWG | 0.05 | 0.002 | 287 |
| 24 AWG | 0.045 | 0.0016 | 355 |
| Twisted Pair Wire 24AUG | |||
| 2 Pair | 0.14 | 0.0154 | 37 |
| 3 Pair | 0.15 | 0.0177 | 32 |
| 4 Pair Cat 5 | 0.22 | 0.038 | 15 |
| 25 Pair | 0.51 | 0.2042 | 3 |
| Twisted Pair Wire (Shielding)* | |||
| 4 Pair 24 AUG | 0.25 | 0.0491 | 11 |
| 25 Pair 24 AUG | 0.51 | 0.2042 | 3 |
| Type 1A 22 AUG | 0.43 | 0.1451 | 4 |
| Coax Cable (Max) | |||
| RG58/U | 0.193 | 0.0292 | 19 |
| RG59/U RG62/U | 0.242 | 0.046 | 12 |
| RG6/U | 0.27 | 0.0572 | 10 |
| Fiber Optic Cable 62.5/125/900, PVC JACKET,OFNR* | |||
| 2 Strand | 0.175 | 0.024 | 23 |
| 4 Strand | 0.185 | 0.0269 | 21 |
| 6 Strand | 0.21 | 0.0346 | 16 |
* Based on 40% fill ratio
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Our line of corner ducts includes accessories such as pre-applied adhesive backing, fittings, inside and outside corners, and tee reducers so your wire management systems can be 100% customized. All parts are made of strong, durable, lightweight, UL 94-VO compliant PVC that is also paintable (Latex) to perfectly match walls, ceilings, and even baseboards. Custom colors are available upon request. Minimums apply. Long-lasting materials Parts made from a UL V0-94 compliant flame resistant PVC.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Size | WC1075 | WC1150 | WC1250 |
| A (Inch) | 1.062 | 2.187 | 2.75 |
| B (Inch) | 0.563 | 0.813 | 1.094 |
| C (Inch) | 0.065 | 0.065 | 0.7 |
| Tape Width (Inch) | 0.5 | 0.75 | 0.75 |
| RACEWAY MODEL NO. | WC1150 | ||
|---|---|---|---|
| AREA OF RACEWAY (Sq. In.) | 1.41 | ||
| Wire Type | Wire Dia.(In.) | Wire Area (Sq. In.) | |
| Building Wire THHN | |||
| 14AWG | 0.108 | 0.0092 | 15 |
| 12 AWG | 0.126 | 0.0125 | 11 |
| 10 AWG | 0.17 | 0.0227 | 6 |
| Signal Wire UL Style 1061 300 Volt, 80 C* | |||
| 18 AWG | 0.066 | 0.0034 | 165 |
| 20 AWG | 0.066 | 0.0028 | 200 |
| 22 AWG | 0.05 | 0.002 | 287 |
| 24 AWG | 0.045 | 0.0016 | 355 |
| Twisted Pair Wire 24AUG | |||
| 2 Pair | 0.14 | 0.0154 | 37 |
| 3 Pair | 0.15 | 0.0177 | 32 |
| 4 Pair Cat 5 | 0.22 | 0.038 | 15 |
| 25 Pair | 0.51 | 0.2042 | 3 |
| Twisted Pair Wire (Shielding)* | |||
| 4 Pair 24 AUG | 0.25 | 0.0491 | 11 |
| 25 Pair 24 AUG | 0.51 | 0.2042 | 3 |
| Type 1A 22 AUG | 0.43 | 0.1451 | 4 |
| Coax Cable (Max) | |||
| RG58/U | 0.193 | 0.0292 | 19 |
| RG59/U RG62/U | 0.242 | 0.046 | 12 |
| RG6/U | 0.27 | 0.0572 | 10 |
| Fiber Optic Cable 62.5/125/900, PVC JACKET,OFNR* | |||
| 2 Strand | 0.175 | 0.024 | 23 |
| 4 Strand | 0.185 | 0.0269 | 21 |
| 6 Strand | 0.21 | 0.0346 | 16 |
* Based on 40% fill ratio
