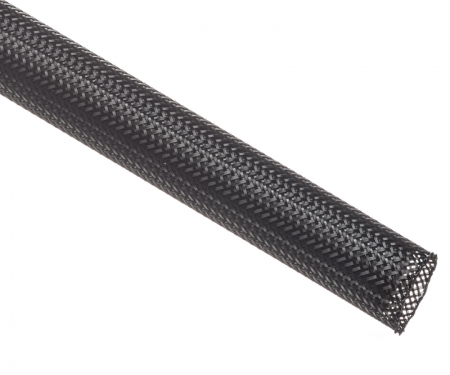

Techflex® Clean Cut Heavy Duty Braided Cable Sleeving
Non-Fray, Cuts With Scissors With Added Abrasion Resistance
0.0 / 5
Clean Cut Heavy Duty Braided Sleeving Features
- Outstanding Protection Against Abrasion & Cut-Through
- Resists Gasoline, Engine Chemicals & Cleaning Solvents
- Expands Up To 150%
- Does Not Trap Heat Or Humidity
- Resin Coated

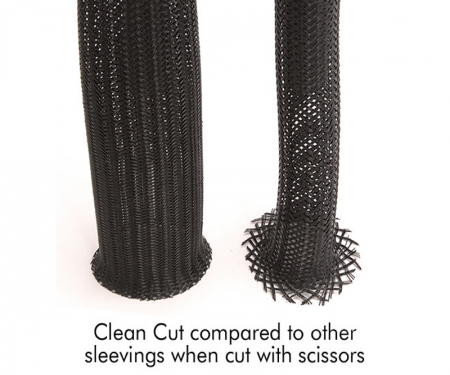

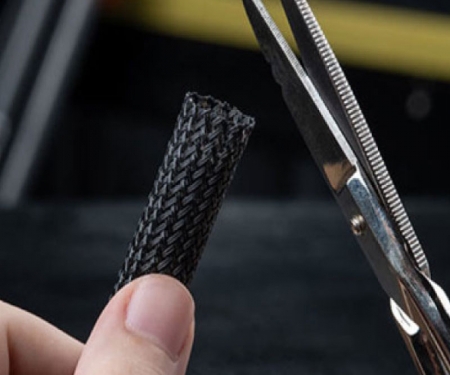

- Non-Fray Cut With Scissors Instead of Hot-knife.
- 10 mil (PET) & 15 mil nylon 6-6 polyamide monofilament yarns
- Highly flexible
Clean Cut heavy duty is perfect for heavy duty applications where there is no access to a hot knife. This dual monofilament sleeve is constructed with 10 mil polyethylene terepthalate (PET) and 15 mil nylon 6-6 polyamide monofilament yarns for superior strength. For an extra level of protection, a resin coating is applied to offer improved abrasion, cut, and fray resistance. The open-weave construction expands to fit several application shapes and sizes, and also makes this sleeving highly flexible and resistant to trapping moisture, heat and humidity. Clean Cut® HD is commonly used in military, marine, and industrial applications where additional abrasion and moisture protection is needed.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Size | Part Number | Expansion Max | Expansion Min | Bulk Spool | Shop Spool | Lbs / 100' |
|---|---|---|---|---|---|---|
| 1/8" | CCH0.13BK | 1/4" | 1/8" | 1000' | 100' | .28 |
| 1/4" | CCH0.25BK | 3/8" | 1/8" | 1000' | 100' | .42 |
| 3/8" | CCH0.38BK | 1/2" | 1/4" | 500' | 100' | .80 |
| 1/2" | CCH0.50BK | 3/4" | 3/8" | 500' | 100' | 1.06 |
| 3/4" | CCH0.75BK | 1 1/4" | 3/4" | 250' | 75' | 1.60 |
| 1" | CCH1.00BK | 1 1/2" | 1" | 250' | 50' | 1.71 |
| 1 1/4" | CCH1.25BK | 2 1/4" | 1 1/4" | 250' | 50' | 2.02 |
| 1 1/2" | CCH1.50BK | 2 1/2" | 1 1/2" | 200' | 50' | 2.70 |
| 2" | CCH2.00BK | 3 1/4" | 2" | 100' | 25' | 3.36 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Clean Cut heavy duty is perfect for heavy duty applications where there is no access to a hot knife. This dual monofilament sleeve is constructed with 10 mil polyethylene terepthalate (PET) and 15 mil nylon 6-6 polyamide monofilament yarns for superior strength. For an extra level of protection, a resin coating is applied to offer improved abrasion, cut, and fray resistance. The open-weave construction expands to fit several application shapes and sizes, and also makes this sleeving highly flexible and resistant to trapping moisture, heat and humidity. Clean Cut® HD is commonly used in military, marine, and industrial applications where additional abrasion and moisture protection is needed.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Size | Part Number | Expansion Max | Expansion Min | Bulk Spool | Shop Spool | Lbs / 100' |
|---|---|---|---|---|---|---|
| 1/8" | CCH0.13BK | 1/4" | 1/8" | 1000' | 100' | .28 |
| 1/4" | CCH0.25BK | 3/8" | 1/8" | 1000' | 100' | .42 |
| 3/8" | CCH0.38BK | 1/2" | 1/4" | 500' | 100' | .80 |
| 1/2" | CCH0.50BK | 3/4" | 3/8" | 500' | 100' | 1.06 |
| 3/4" | CCH0.75BK | 1 1/4" | 3/4" | 250' | 75' | 1.60 |
| 1" | CCH1.00BK | 1 1/2" | 1" | 250' | 50' | 1.71 |
| 1 1/4" | CCH1.25BK | 2 1/4" | 1 1/4" | 250' | 50' | 2.02 |
| 1 1/2" | CCH1.50BK | 2 1/2" | 1 1/2" | 200' | 50' | 2.70 |
| 2" | CCH2.00BK | 3 1/4" | 2" | 100' | 25' | 3.36 |
