Techflex® Clean Cut® Braided Cable Sleeving
Non-Fray Sleeving - Can Be Cut With Scissors
0.0 / 5
Techflex® Clean Cut Braided Sleeving Features
- Resistant To Fraying When Cut With Scissors
- Increased Braid Density For Fuller Coverage
- High Abrasion Resistant
- Cut Resistant
- Expands Up to 150% or More
- Braided from 0.10" PET Monofilament Yarns
- Halogen-Free - RoHS Compliant
- FAR 25, FMVSS 302 Approved
- Melt Temp: 482°F / 250°C
- Operating Temps: -94°F to 257°F (-70°C to 125°C)

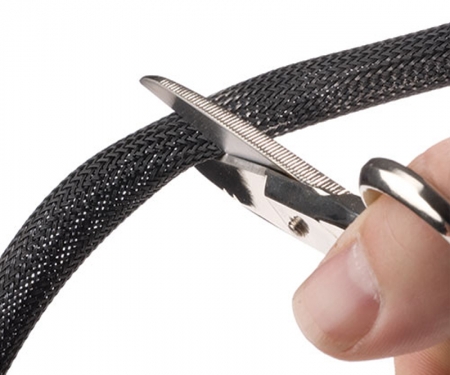

Clean Cut sleeving is designed for ease of installation when a hot knife is either unavailable or impractical. When cut with scissors, the specially engineered filaments will tend to cling to each other minimizing end fray during installation, while still allowing full expandability of the sleeving. This fray-resistant characteristic is accomplished without the use of chemical additives or bonding agents. This results in a cleaner product and eliminates possible chemical contamination. Because of this unique construction, Clean Cut has a very soft feel and the increased braid density provides for fuller coverage. Clean Cut is braided for maximum coverage while still allowing enough expansion for easy installation over plugs and connectors. By adjusting the physical characteristics of the polyethylene terephthalate filaments, the Techflex engineers have produced a product with the same specifications as our PET sleeving with the unique advantage of being able to cut the material with ordinary scissors and still maintain an extraordinarily fray-resistant end without the addition of chemical binders or adhesives. Flexo Clean Cut is ideal for field installers and other situations where access to a hot knife is impossible. Clean Cut's fray resistant properties allow frequent expansion of the cut end without unraveling. When cut with a hot knife, Clean Cut produces a clean, smooth, and virtually frayless end. Clean Cut PET expandable sleeving is braided from 8 mil polyethylene terephthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation and abrasion. Clean Cut PET is tested and approved for use under FAR 23/25, FMVSS 302, UL, and CSA material standards. Additionally, it is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured as Round Not Flat
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" | CCP0.13 CCP0.25 CCP0.38 CCP0.50 CCP0.75 CCP1.00 CCP1.25 CCP1.50 CCP1.75 CCP2.00 | 1/8" 5/32" 3/16" 1/4" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" | 1/4" 7/16" 5/8" 3/4" 1" 1 3/16" 1 1/2" 2" 2 1/8" 2 1/2" | 1,000' 1,000' 500' 500' 250' 250' 250' 250' 200' 200' | 100' 100' 100' 100' 75' 50' 50' 50' 50' 50' | 2 2 2 2 2 2 2 2 2 2 | 0.40 0.46 0.74 0.82 1.11 1.24 1.56 1.85 2.30 2.80 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .008 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife/Scissor |
| Colors | 2 |
| Wall Thickness | .024 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Clean Cut sleeving is designed for ease of installation when a hot knife is either unavailable or impractical. When cut with scissors, the specially engineered filaments will tend to cling to each other minimizing end fray during installation, while still allowing full expandability of the sleeving. This fray-resistant characteristic is accomplished without the use of chemical additives or bonding agents. This results in a cleaner product and eliminates possible chemical contamination. Because of this unique construction, Clean Cut has a very soft feel and the increased braid density provides for fuller coverage. Clean Cut is braided for maximum coverage while still allowing enough expansion for easy installation over plugs and connectors. By adjusting the physical characteristics of the polyethylene terephthalate filaments, the Techflex engineers have produced a product with the same specifications as our PET sleeving with the unique advantage of being able to cut the material with ordinary scissors and still maintain an extraordinarily fray-resistant end without the addition of chemical binders or adhesives. Flexo Clean Cut is ideal for field installers and other situations where access to a hot knife is impossible. Clean Cut's fray resistant properties allow frequent expansion of the cut end without unraveling. When cut with a hot knife, Clean Cut produces a clean, smooth, and virtually frayless end. Clean Cut PET expandable sleeving is braided from 8 mil polyethylene terephthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation and abrasion. Clean Cut PET is tested and approved for use under FAR 23/25, FMVSS 302, UL, and CSA material standards. Additionally, it is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured as Round Not Flat
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" | CCP0.13 CCP0.25 CCP0.38 CCP0.50 CCP0.75 CCP1.00 CCP1.25 CCP1.50 CCP1.75 CCP2.00 | 1/8" 5/32" 3/16" 1/4" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" | 1/4" 7/16" 5/8" 3/4" 1" 1 3/16" 1 1/2" 2" 2 1/8" 2 1/2" | 1,000' 1,000' 500' 500' 250' 250' 250' 250' 200' 200' | 100' 100' 100' 100' 75' 50' 50' 50' 50' 50' | 2 2 2 2 2 2 2 2 2 2 | 0.40 0.46 0.74 0.82 1.11 1.24 1.56 1.85 2.30 2.80 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .008 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife/Scissor |
| Colors | 2 |
| Wall Thickness | .024 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
