Cantilever Rack Shelves - Kendall Howard

1U, 2U & 3U - Vented or Standard 15 Lbs to 150 Lbs Max Weight Capacity

0.0 / 5

(0)

Kendall Howard Cantilever Rack Shelves - Kendall Howard

  • Vented & Standard Options Available
  • Light Duty & Heavy Duty Weight Capacity Options Available.
  • Cantilever Design
  • 19" EIA Compliant
  • Made In The USA
  • 5-Year Limited Warranty
See More Technical Specifications


The Kendall Howard Cantilever shelf helps to is perfect for supporting monitors, switches and other lightweight network or A/V equipment.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

1U 5" Component Shelf

Part Number 1906-1-011-01
Width 19"
Depth 5"
Height 1.72"
Weight 2.43 lbs.
Shipping Dimensions 21.88" L x 2.5" W x 3.5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



1U 12" Component Shelf

Part Number 1906-1-001-01
Width 19"
Depth 12"
Height 1.72"
Weight 7.00 lbs.
Shipping Dimensions 22" L x 16" W x 3" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish

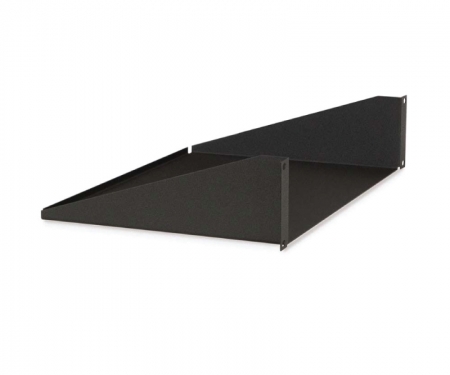

2U 12" Economy Rack Shelf

Part Number 3000-1-002-02
Width 19"
Depth 12.112"
Height 3.47"
Weight 4.80 lbs.
Shipping Dimensions 21" L x 16" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



2U 12" Vented Economy Rack Shelf

Part Number 3000-1-102-02
Width 19"
Depth 12.112"
Height 3.47"
Weight 5.00 lbs.
Shipping Dimensions 16" L x 22" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



2U 14" Component Shelf

Part Number 1906-1-002-02
Width 19"
Depth 14"
Height 3.47"
Weight 9.00 lbs.
Shipping Dimensions 22" L x 17" W x 6" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



2U 14" Vented Eco Shelf

Part Number 1906-1-010-02
Width 19"
Depth 14"
Height 3.47"
Weight 6.05 lbs.
Shipping Dimensions 21" L x 17" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



2U 14.75" Economy Rack Shelf

Part Number 3000-1-003-02
Width 19"
Depth 14.75"
Height 3.47"
Weight 5.85 lbs.
Shipping Dimensions 21" L x 18" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



2U 14.75" Vented Economy Rack Shelf

Part Number 3000-1-103-02
Width 19"
Depth 14.75"
Height 3.47"
Weight 5.50 lbs.
Shipping Dimensions 21" L x 18" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



3U 16" Component Shelf

Part Number 1906-1-003-03
Width 19"
Depth 16"
Height 5.22"
Weight 10.50 lbs.
Shipping Dimensions 22" L x 19" W x 8" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish







Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
