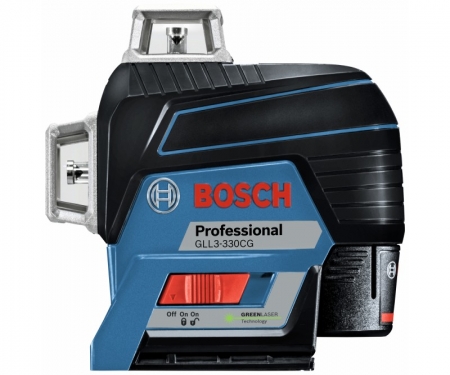

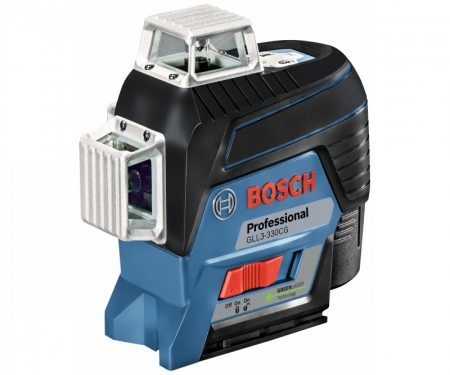

Bosch® Self Levelling Line Laser - GLL3-330CG

360º Connected Green-Beam Three-Plane Levelling & Alignment

0.0 / 5

(0)

Bosch® Line Laser GLL3-330CG Features

  • AUTOMATIC FREE SHIPPING FOR ALL BOSCH® ORDERS ABOVE $149.99

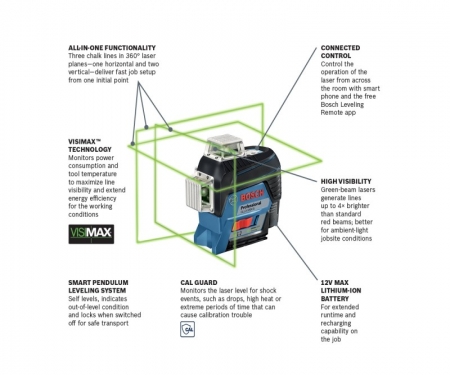

  • Ultimate all-in-one leveling and alignment laser – facilitates one-person job setup with connected capability, dual-power technology and long working range

  • Bright green-beam laser – up to 4X brighter than standard red beams, the leveling laser has a working range of up to 200 Ft. diameter

  • Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life

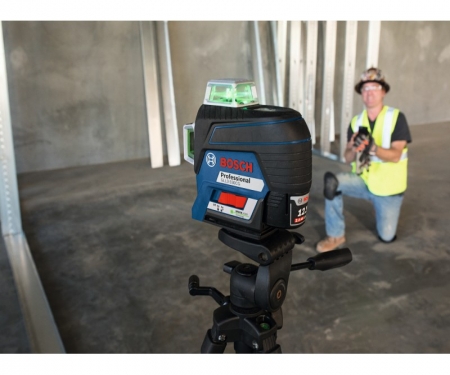

  • Bluetooth® connectivity – controls the operation of the laser from across the room with their smart phone and the free Bosch Leveling Remote App

  • Bosch Leveling Remote App – free to download and free to use, this app turns the leveling laser and receiver mode on and off, select the laser planes, adjust line visibility and provide battery and level alerts

  • Dual power technology – utilizes the included Bosch 12 V Max Lithium-ion battery or four AA alkaline batteries

  • Pulse mode – extends the working range up to 330 Ft. (diameter) and/or in bright lighting, using the optional LR8 receiver

  • Smart Pendulum System – self levels and indicates out-of-level condition up to ±4°

  • Manual mode – locks lines for use at any angle

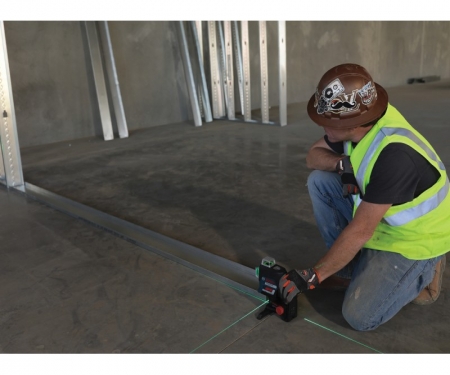

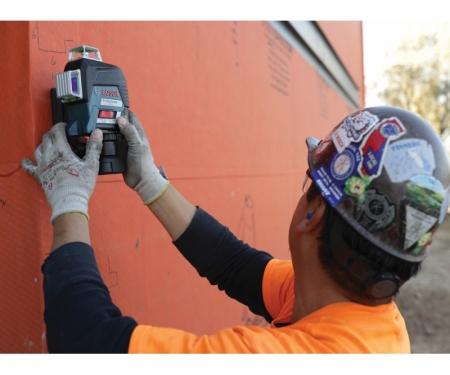

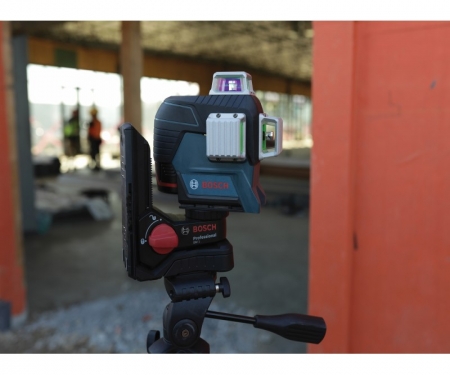

  • BM 1 positioning device – clips to multiple surfaces, stands on floor with retractable feet and mounts to drywall or wood with screws for quick and easy setup

  • CAL Guard – monitors the level laser for calibration trouble, such as drops or high heat

  • Jobsite tough over-molded construction – withstands rainy or dusty jobsite conditions, and is IP54 rated

See More Technical Specifications

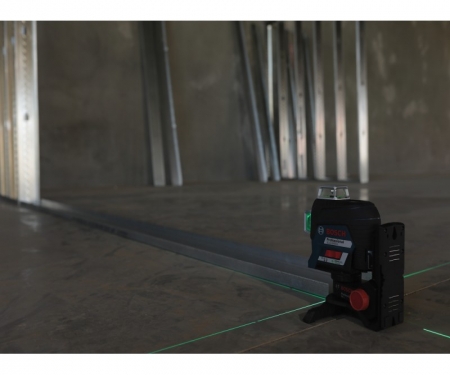

The Bosch GLL3-330CG 360° Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser provides an all-in-one level and alignment solution for one-person job setup. The leveling laser generates three green-beam laser chalk lines in 360° laser planes – one horizontal and two vertical. With Bluetooth® connectivity, users can control the setup of the laser from across the room with their smart phone and the free Bosch Leveling Remote App. The laser offers dual power technology, employed the included Bosch 12 V Max Lithium-ion battery for extended runtime, or with four AA alkaline batteries. The laser has a working range of up to 200 Ft. diameter, and with pulse mode the range extends up to 330 Ft. (diameter) with the optional LR8 receiver. This laser features VisiMax™ Technology to drive maximum line visibility, CAL Guard for calibration assurance and robust over-molded construction to withstand rainy or dusty jobsite conditions.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

SPECIFICATIONS:

Accuracy Up to +/-3/32-in @ 30-ft
Battery Voltage 12
Height 5.8"
Laser Diode
Length 6.4"
Leveling Type Self-Leveling, Up to 4 degrees
Mount Threading 1/4-20, 5/8-11
Operating Temperature 14 degrees F / -10 degrees C up to 104 degrees F / 40 degrees C
Range Up to 200-ft. diameter
Weight 2.0lb
Width 3.3"
Includes (1) GLL3-330CG 360° Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser, (1) BAT414 12V Max Battery, (1) BC330 12V Max Charger, (1) BM 1 Positioning Device, (1) Laser Target Plate, (1) AA1 Alkaline Battery Adapter, (1) Heavy-Duty Pouch, (1) Hard Carrying Case

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

The Bosch GLL3-330CG 360° Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser provides an all-in-one level and alignment solution for one-person job setup. The leveling laser generates three green-beam laser chalk lines in 360° laser planes – one horizontal and two vertical. With Bluetooth® connectivity, users can control the setup of the laser from across the room with their smart phone and the free Bosch Leveling Remote App. The laser offers dual power technology, employed the included Bosch 12 V Max Lithium-ion battery for extended runtime, or with four AA alkaline batteries. The laser has a working range of up to 200 Ft. diameter, and with pulse mode the range extends up to 330 Ft. (diameter) with the optional LR8 receiver. This laser features VisiMax™ Technology to drive maximum line visibility, CAL Guard for calibration assurance and robust over-molded construction to withstand rainy or dusty jobsite conditions.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

SPECIFICATIONS:

Accuracy Up to +/-3/32-in @ 30-ft
Battery Voltage 12
Height 5.8"
Laser Diode
Length 6.4"
Leveling Type Self-Leveling, Up to 4 degrees
Mount Threading 1/4-20, 5/8-11
Operating Temperature 14 degrees F / -10 degrees C up to 104 degrees F / 40 degrees C
Range Up to 200-ft. diameter
Weight 2.0lb
Width 3.3"
Includes (1) GLL3-330CG 360° Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser, (1) BAT414 12V Max Battery, (1) BC330 12V Max Charger, (1) BM 1 Positioning Device, (1) Laser Target Plate, (1) AA1 Alkaline Battery Adapter, (1) Heavy-Duty Pouch, (1) Hard Carrying Case
