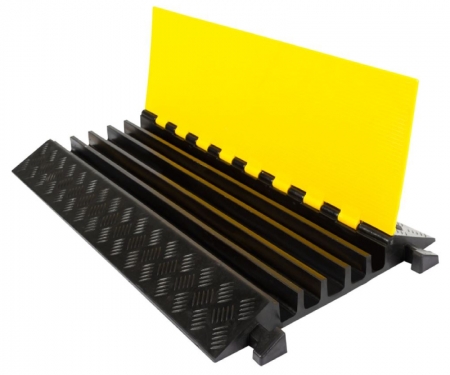

ATLAS 5 Channel Cable Protector - Heavy Duty
1.5” H Channel Size | 20000 Lbs Per Axle Weight Capacity
0.0 / 5
ATLAS 5 Channel Cable Protector - Heavy Duty Features
- Max Weight Capacity 20,000 Lbs Per Axle
- Channel Dimensions 1.5” H x 1.5” W
- Overall Dimensions: 37" long x 19.625" wide x 2.125" high
- Commonly Used In Vehicle & Pedestrian High Traffic Applications
- Highly Durable To Withstand Severe Weather & Temperatures from -40ºF to +130℉
- Constructed From Highly Durable Industrial Grade Rubber Base & Polyurethane Lid
- Highly Visible, Black Base & Safety Yellow Hinged lid
These Atlas heavy duty rubber cable protectors made by Kable Kontrol®, are constructed from industrial grade rubber and designed for the protection of multiple valuable cables or hoses. These durable cable protector ramps will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Furthermore, due to their rigid manufacturing process, these Atlas heavy duty cable protectors are commonly used both outdoors and indoors as well as in any in weather condition. The black base contrasted against the bright safety yellow lid makes these cable ramps highly visible to any nearby pedestrians, further lowering the possibility of pedestrian injury. These cable protector ramps can withstand 20,000 Lbs of vehicle drive-over weight per axle. Lastly, these cable protectors do not move around because of their natural weight. This cable cover weighs 46 lbs in total weight; therefore, when the cable protectors are ganged together on longer runs, absolutely no movement will occur. The recommended operating temperature range is -40º to +130℉. Atlas Heavy Duty Rubber cable covers are designed and manufactured according to the guidelines provided by MUTCD, OSHA, RoHS, REACH. For maximum functionality, the rubber cable protectors have been treated for temperature resistivity and UV-stabilization.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
|
PART # | Cable Protector Type | Max Weight Capacity | Channel Height | Channel Width | Dimensions | Material | Item Weight | Operating Temperature |
|---|---|---|---|---|---|---|---|---|
| CP9988
| 5 Channel Cable Protector | 20,000 Lbs Per Axle | 1.5" Channel Height | 1.5" Channel Width | Length: 37” Width: 19.625” Height: 2.125” | Durable Industrial Grade Rubber Base & Polyurethane Lid | 46 lbs | 40º F to 131º F |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What are Common Applications and Areas of Use?
- Government and administrative buildings
- Construction sites
- Concerts, music shows, and roadshows
- Convention centers
- Amphitheaters
- Indoor and outdoor industrial setting
- Schools
- Race tracks
- Fairs and amusement parks
- Dance halls and performance centers
What are some Benefits of Using HD Rubber Cable Protectors?
- Hd rubber cable protectors can protect your expensive cables, wires, and hoses and are equally useful for reducing cable maintenance costs. Heavy duty rubber cable covers minimize the chances of damage or breakage by protecting cables and cords against external pressure and extreme environmental conditions.
- Heavy duty rubber cable protectors are manufactured with non-biodegradable material. These provide insulation against electric currents, which in turn reduces the chances of a hazard even if the cables are damaged or sparking occurs.
- Heavy duty rubber cable covers do not allow fluids to accumulate on the surface. However, combustible liquids and materials should be removed as soon as possible. The HD rubber cable cover does not require daily maintenance. Weekly cleaning with mild cleaning products or soapy water is all that you need for maximizing the life of your rubber cable covers.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Installation Guide :
Installing heavy duty rubber cable protectors is a one-person job. Here are a few tips for installing these drive-over cable protectors:
- Clean the placement area thoroughly and fill any holes or gaps in the surface. Remove any bumps to make the surface smooth, as you do not want the cable protectors to be uneven.
- Connect the body and lid as recommended in the instruction manual. Get in touch with our representative for further information.
- Keep the lid opened. Now, insert one cable, cord, or hose at a time. Make sure that each cable or hose is separated from the other. Do not overstock the channels of heavy duty rubber cable covers.
- Place the most sensitive cables and cords towards the hinge side.
- Finally, secure the lid with grip tape.
Product Details
These Atlas heavy duty rubber cable protectors made by Kable Kontrol®, are constructed from industrial grade rubber and designed for the protection of multiple valuable cables or hoses. These durable cable protector ramps will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Furthermore, due to their rigid manufacturing process, these Atlas heavy duty cable protectors are commonly used both outdoors and indoors as well as in any in weather condition. The black base contrasted against the bright safety yellow lid makes these cable ramps highly visible to any nearby pedestrians, further lowering the possibility of pedestrian injury. These cable protector ramps can withstand 20,000 Lbs of vehicle drive-over weight per axle. Lastly, these cable protectors do not move around because of their natural weight. This cable cover weighs 46 lbs in total weight; therefore, when the cable protectors are ganged together on longer runs, absolutely no movement will occur. The recommended operating temperature range is -40º to +130℉. Atlas Heavy Duty Rubber cable covers are designed and manufactured according to the guidelines provided by MUTCD, OSHA, RoHS, REACH. For maximum functionality, the rubber cable protectors have been treated for temperature resistivity and UV-stabilization.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
|
PART # | Cable Protector Type | Max Weight Capacity | Channel Height | Channel Width | Dimensions | Material | Item Weight | Operating Temperature |
|---|---|---|---|---|---|---|---|---|
| CP9988
| 5 Channel Cable Protector | 20,000 Lbs Per Axle | 1.5" Channel Height | 1.5" Channel Width | Length: 37” Width: 19.625” Height: 2.125” | Durable Industrial Grade Rubber Base & Polyurethane Lid | 46 lbs | 40º F to 131º F |
Product Manuals
Installation Guide :
Installing heavy duty rubber cable protectors is a one-person job. Here are a few tips for installing these drive-over cable protectors:
- Clean the placement area thoroughly and fill any holes or gaps in the surface. Remove any bumps to make the surface smooth, as you do not want the cable protectors to be uneven.
- Connect the body and lid as recommended in the instruction manual. Get in touch with our representative for further information.
- Keep the lid opened. Now, insert one cable, cord, or hose at a time. Make sure that each cable or hose is separated from the other. Do not overstock the channels of heavy duty rubber cable covers.
- Place the most sensitive cables and cords towards the hinge side.
- Finally, secure the lid with grip tape.
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What are Common Applications and Areas of Use?
- Government and administrative buildings
- Construction sites
- Concerts, music shows, and roadshows
- Convention centers
- Amphitheaters
- Indoor and outdoor industrial setting
- Schools
- Race tracks
- Fairs and amusement parks
- Dance halls and performance centers
What are some Benefits of Using HD Rubber Cable Protectors?
- Hd rubber cable protectors can protect your expensive cables, wires, and hoses and are equally useful for reducing cable maintenance costs. Heavy duty rubber cable covers minimize the chances of damage or breakage by protecting cables and cords against external pressure and extreme environmental conditions.
- Heavy duty rubber cable protectors are manufactured with non-biodegradable material. These provide insulation against electric currents, which in turn reduces the chances of a hazard even if the cables are damaged or sparking occurs.
- Heavy duty rubber cable covers do not allow fluids to accumulate on the surface. However, combustible liquids and materials should be removed as soon as possible. The HD rubber cable cover does not require daily maintenance. Weekly cleaning with mild cleaning products or soapy water is all that you need for maximizing the life of your rubber cable covers.
