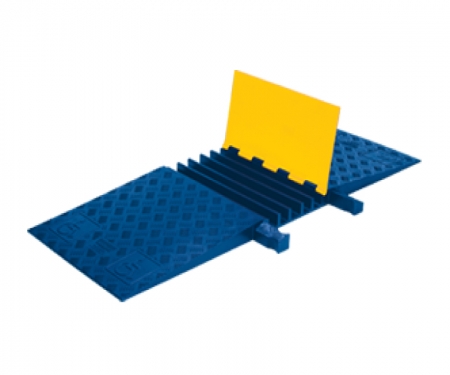

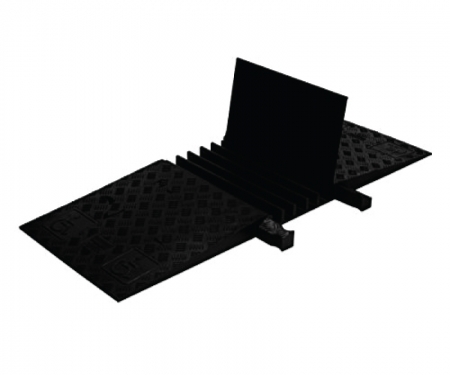

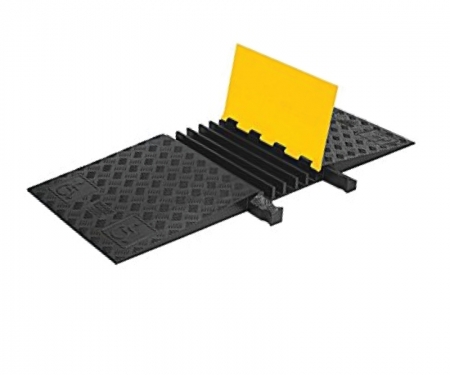

Yellow Jacket® 5 Channel ADA Cable Ramps
1.325” H Channel Size | Low Gradient | 3 Color Options
0.0 / 5
Yellow Jacket® 5 Channel ADA Cable Ramps Features
- Max Weight Capacity: 21,000 Lbs Per Axle
- Channel Size: 1.339” W x 1.325” H
- Length: 18” x Width: 50” x Height: 1.875”
- Protects Cables & Hoses Up to 1.325”
- ADA/DDA Accessibility Ramps Built In
- Interconnects With Standard 5 Channel Yellow Jacket Protector
- Dog Bone Connectors to Extend to Any Length
- Reinforced Hinged Lid
Compatible With Standard Yellow Jacket 5 Channel Protector.

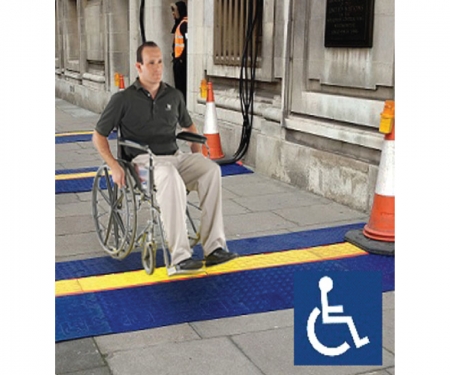

YELLOW JACKET® 5-CHANNEL ADA CABLE PROTECTOR has built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors. Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Yellow Jacket cable protector. This modular interlocking design is available in lightweight 18″ sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Load Capacity | Length | Width | Height | Channel Width | Channel Height | Weight |
| 10500 lb/Tire(4763 kg), 21000 lb/Axle (9526 kg) | 18” (45.7cm) | 50” (127.0cm) | 1.87” (4.76cm) | 1.339” (3.4cm) | 1.325” (3.37cm) | 21lbs (9.6kg) |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
YELLOW JACKET® 5-CHANNEL ADA CABLE PROTECTOR has built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors. Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Yellow Jacket cable protector. This modular interlocking design is available in lightweight 18″ sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Load Capacity | Length | Width | Height | Channel Width | Channel Height | Weight |
| 10500 lb/Tire(4763 kg), 21000 lb/Axle (9526 kg) | 18” (45.7cm) | 50” (127.0cm) | 1.87” (4.76cm) | 1.339” (3.4cm) | 1.325” (3.37cm) | 21lbs (9.6kg) |
