Kable Kontrol® 4:1 Single Wall Heat Shrink Tubing
Highest Ratio HeatShrink for The Tightest Fit - 4 Ft Long
0.0 / 5
Kable Kontrol® 4:1 Single Wall Heat Shrink Tubing Features
- UL Listed, File E536025
- RoHS Compliant
- UV Resistant
- Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT.
- Shrink ratio: 75% or more in the radial direction, 50% or less in the axial direction
- Continuous operating temperature: -55°C (-67°F) to 135°C (275°F)
- Flammability: UL VW-1, CSA OFT (except clear)
- High resistance to abrasion, chemicals and oils
- Please be advised: All 4’ long sticks are shipped Folded to avoid costly "oversized shipping" fees for the customer. If you require your HS stick to ship un-folded please call 1-877-284-7760

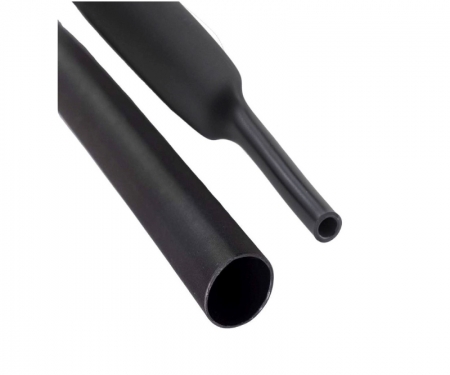

Kable Kontrol® 4:1 over-expanded polyolefin heat shrink tubing is flexible, flame-retardant, and used for specialty applications that include cable jacket retrofitting and repair, as well as the electrical insulation of wire assemblies with oversize components or connectors. The over-expanded product fits easily over the end of a connector and shrinks down to 25% of its original diameter to fit snugly over both the connector and any narrower attached wires. Available in Black.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Applications
Kable Kontrol 4:1 Polyolefin Heat Shrink is a flexible, high shrink ratio, flame retardant, heat resistant, heat shrinkable polyolefin tube. It is designed for a wide range of applications requiring high heat-resistance, including insulation for electric & electronic devices, wire strain relief and protective covering for parts such as resistors and capacitors.
Minimum Shrink Temperature: 90°C
Test Standards & Compliances
- UL 224: VW-1, 125°C, 600V
- RoHS & REACH Compliant
Specification Values
| Property | Test Method | Value | ||
|
Physical | Unaged | Tensile strength | ASTM D638 | Min. 1,500 psi |
| Elongation | Min. 200% | |||
| Aged | Elongation | ASTM D638 | Min. 100% | |
| Fluid Resist. | Tensile strength | 24°C/24 hrs 6 Fluids | Min. 1,000 psi | |
| Dielectric strength | Min. 400 Volts/mil | |||
| Concentricity | ASTM D2671 | Min. 50% | ||
| Heat shock | 250°C/4 hrs | No cracks, flowing or dripping | ||
| Low temperature flexibility | - 55°C/4 hrs | No cracking | ||
| Secant modulus | ASTM D882 | Max. 25,000 psi | ||
| Specific gravity | ASTM D792 | Max. 1.35 (Max. 1.00 Clear) | ||
| Electrical | Dielectric strength | ASTM D2671 | Min. 500 Volts/mil | |
| Volume resistivity | ASTM D876 | Min. 1014W - cm | ||
|
Chemical | Copper corrosion | 175°C/16 hrs | No corrosion | |
| Fungus resistance | ASTM G21 | No growth | ||
| Water Absorption | ASTM D570 | Max. 0.5% | ||
| Flammability | ASTM D2671 | Pass | ||

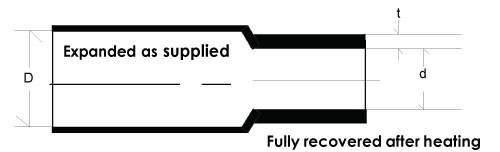

Product Dimensions
 | ||||||
|
Size | Expanded | Recovered | ||||
| Internal Diameter Minimum (D) | Internal Diameter Maximum (d) | Minimum Total Wall Thickness (t) | ||||
| Metric (Inch) | In. | mm | In. | mm | In. | mm |
| 12mm (1/2”) | 0.47 | 12.0 | 0.118 | 3.0 | 0.037 | 0.96 |
| 19mm (3/4”) | 0.75 | 19.0 | 0.180 | 4.5 | 0.037 | 0.96 |
| 25mm (1”) | 1.00 | 25.4 | 0.276 | 7.0 | 0.037 | 0.96 |
| 32mm (1-1/4”) | 1.26 | 32.0 | 0.315 | 8.0 | 0.059 | 1.50 |
| 38mm (1-1/2”) | 1.50 | 38.0 | 0.374 | 9.5 | 0.059 | 1.50 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Kable Kontrol® 4:1 over-expanded polyolefin heat shrink tubing is flexible, flame-retardant, and used for specialty applications that include cable jacket retrofitting and repair, as well as the electrical insulation of wire assemblies with oversize components or connectors. The over-expanded product fits easily over the end of a connector and shrinks down to 25% of its original diameter to fit snugly over both the connector and any narrower attached wires. Available in Black.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Applications
Kable Kontrol 4:1 Polyolefin Heat Shrink is a flexible, high shrink ratio, flame retardant, heat resistant, heat shrinkable polyolefin tube. It is designed for a wide range of applications requiring high heat-resistance, including insulation for electric & electronic devices, wire strain relief and protective covering for parts such as resistors and capacitors.
Minimum Shrink Temperature: 90°C
Test Standards & Compliances
- UL 224: VW-1, 125°C, 600V
- RoHS & REACH Compliant
Specification Values
| Property | Test Method | Value | ||
|
Physical | Unaged | Tensile strength | ASTM D638 | Min. 1,500 psi |
| Elongation | Min. 200% | |||
| Aged | Elongation | ASTM D638 | Min. 100% | |
| Fluid Resist. | Tensile strength | 24°C/24 hrs 6 Fluids | Min. 1,000 psi | |
| Dielectric strength | Min. 400 Volts/mil | |||
| Concentricity | ASTM D2671 | Min. 50% | ||
| Heat shock | 250°C/4 hrs | No cracks, flowing or dripping | ||
| Low temperature flexibility | - 55°C/4 hrs | No cracking | ||
| Secant modulus | ASTM D882 | Max. 25,000 psi | ||
| Specific gravity | ASTM D792 | Max. 1.35 (Max. 1.00 Clear) | ||
| Electrical | Dielectric strength | ASTM D2671 | Min. 500 Volts/mil | |
| Volume resistivity | ASTM D876 | Min. 1014W - cm | ||
|
Chemical | Copper corrosion | 175°C/16 hrs | No corrosion | |
| Fungus resistance | ASTM G21 | No growth | ||
| Water Absorption | ASTM D570 | Max. 0.5% | ||
| Flammability | ASTM D2671 | Pass | ||
Product Dimensions
| ||||||
|
Size | Expanded | Recovered | ||||
| Internal Diameter Minimum (D) | Internal Diameter Maximum (d) | Minimum Total Wall Thickness (t) | ||||
| Metric (Inch) | In. | mm | In. | mm | In. | mm |
| 12mm (1/2”) | 0.47 | 12.0 | 0.118 | 3.0 | 0.037 | 0.96 |
| 19mm (3/4”) | 0.75 | 19.0 | 0.180 | 4.5 | 0.037 | 0.96 |
| 25mm (1”) | 1.00 | 25.4 | 0.276 | 7.0 | 0.037 | 0.96 |
| 32mm (1-1/4”) | 1.26 | 32.0 | 0.315 | 8.0 | 0.059 | 1.50 |
| 38mm (1-1/2”) | 1.50 | 38.0 | 0.374 | 9.5 | 0.059 | 1.50 |
