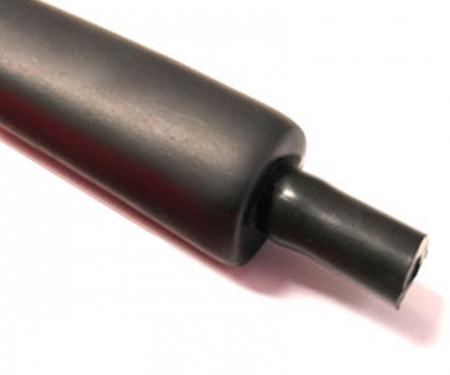

Kable Kontrol™ 4:1 Dual Wall Heat Shrink Tubing

Available in 3/16" - 2" Diameters - 4 FT Sticks & 200 Ft Rolls

0.0 / 5

(0)

Kable Kontrol™ 4:1 Dual Wall Heat Shrink Features

  • UL Listed, File E536025
  • RoHS Compliant
  • Only Black Are UV Resistant
  • Made From Polyolefin Material
  • Shrinks to 1/4 Original Size
  • Meets Requirements of AMS-DTL-23053/4 Class 3
  • Crosses to Sumitomo W3B2(4X), Raychem ATUM4X, LG GSH4635WT
  • Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT
  • Shrink ratio: 75% or more in the radial direction
  • Continuous operating temperature: -55°C to 135°C
  • Very high heat resistance
  • High resistance to chemicals and oils
  • Cross Reference: Raychem RP-4800, Alpha FIT 421, LG GSHS-4635
  • Available in 4' Lengths
  • Mil Spec # AMS-DTL- 23053/5
  • Please be advised: All 4’ long sticks are shipped Folded to avoid costly "oversized shipping" fees for the customer. If you require your HS stick to ship un-folded please call 1-877-284-7760
See More Technical Specifications


This versatile dual walled adhesive-lined heat shrink tubing is ideally used where protection of cables and wires from moisture is important. Applied with a heat gun, tubing will adhere tightly to whatever wire or component is being protected. Tubing will shrink to 1/4 of it's original size. Typically used for insulation, identification of wires, strain relief and bundling of wires. Manufactured to meet SAE AMS-DTL-23053/4 Class 3 specifications. Comes in 4' sticks and 200 ft spools which can be easily cut to shorter lengths as required.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Expanded

Recovered

Nominal

Inside Diameter

Inside Diameter

Total Wall Thickness

Size

in

mm

in

mm

in

mm

3/16”

0.187 4 0.038 .959 0.035 0.889±0.3

5/16

0.314 8 0.065 1.65 0.035 0.889±0.30

1/2"

0.47

12

0.118

3

0.051

1.2954±0.4

3/4"

0.75

19

0.180

4.5

0.063

1.6002±0.4

1"

1

25.4

0.276

7

0.083

2.1082±0.3

1 1/4"

1.26

32

0.315

8 0.090

2.286±0.3

1 1/2"

1.5

38

0.374

9.5

0.098

2.4892±0.3

2”

2.047 52 0.512 13.0 0.098 2.4892±0.3

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

This versatile dual walled adhesive-lined heat shrink tubing is ideally used where protection of cables and wires from moisture is important. Applied with a heat gun, tubing will adhere tightly to whatever wire or component is being protected. Tubing will shrink to 1/4 of it's original size. Typically used for insulation, identification of wires, strain relief and bundling of wires. Manufactured to meet SAE AMS-DTL-23053/4 Class 3 specifications. Comes in 4' sticks and 200 ft spools which can be easily cut to shorter lengths as required.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Expanded

Recovered

Nominal

Inside Diameter

Inside Diameter

Total Wall Thickness

Size

in

mm

in

mm

in

mm

3/16”

0.187 4 0.038 .959 0.035 0.889±0.3

5/16

0.314 8 0.065 1.65 0.035 0.889±0.30

1/2"

0.47

12

0.118

3

0.051

1.2954±0.4

3/4"

0.75

19

0.180

4.5

0.063

1.6002±0.4

1"

1

25.4

0.276

7

0.083

2.1082±0.3

1 1/4"

1.26

32

0.315

8 0.090

2.286±0.3

1 1/2"

1.5

38

0.374

9.5

0.098

2.4892±0.3

2”

2.047 52 0.512 13.0 0.098 2.4892±0.3
