Kable Kontrol™ 3:1 Polyolefin Single Wall Heat Shrink Tubing

Available In 1/8" - 1-1/2" Diameters, 5 Colors

0.0 / 5

(0)

3:1 Polyolefin Single Wall Heat Shrink Tubing Features

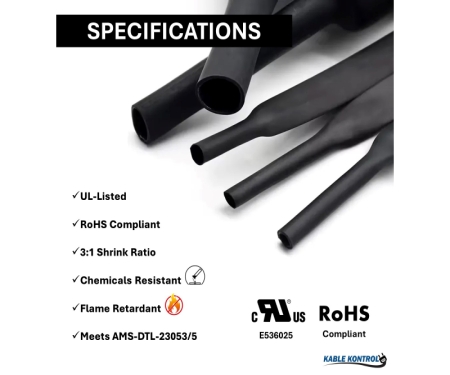

  • UL Listed, File E536025
  • RoHS Compliant
  • Only Black Are UV Resistant

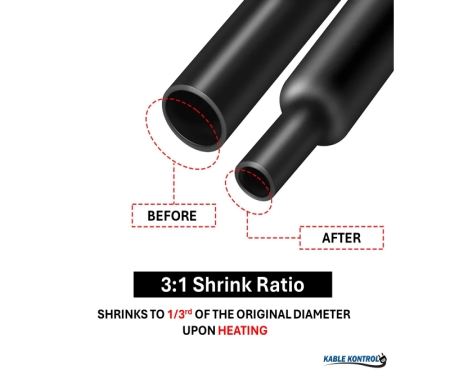

  • 3:1 Shrink Ratio (Shrinks to 1/3 its Original Diameter)
  • Meets Requirements of AMS-DTL-23053/5 (Formerly MIL-I-23053/5)
  • Maximum Continuous Use Temperature 135ºC
  • Shrink Temperature of 100°C & Operating Temperature of -55°C To + 135°C
  • Crosses to: Sumitomo B2(3X), Raychem RNF-3000, Alpha FIT-321V, Canusa CPX-300, LG GSHS-3635



See More Technical Specifications


3:1 Single wall heat shrink tubing is made from a specially formulated, cross-linked polyolefin. It offers excellent electrical, chemical, and physical properties. This tough, flexible, flame retardant tubing can be used for electrical insulation, wire bundling, lightweight harnessing, and wire strain relief in a variety of home, commercial, industrial and military applications. The flame retardant jacket of 3:1 single wall heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.

3:1 heat shrink tubing will slide easily over inline splices and connectors, and shrink down to 33% of its original diameter to fit snugly over any wire, hose or cable management project. it is an excellent way to terminate the ends of your Braided Sleeving, creating a tight, professional finish.

Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation

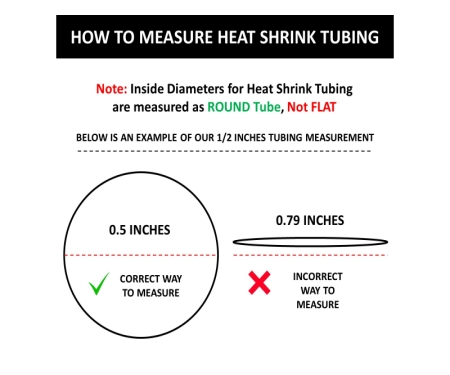

Note: Inside Diameters for Heat Shrink Tubing are measured as ROUND Tube, Not FLAT

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760



Expanded

Recovered

SKU #

Nominal

Inside Diameter

Inside Diameter

Minimum Wall Thickness

Size

in

mm

in

mm

in

mm

HS3371-SP

1/8"

0.118

3.0

0.039

1.0

0.019

0.50

HS3372-SP

3/16"

0.177

4.5

0.059

1.5

0.021

0.54

HS3374-SP

1/4"

0.235

6.0

0.078

2.0

0.023

0.59

HS3376-SP

3/8"

0.354

9.0

0.118

3.0

0.027

0.68

HS3378-SP

1/2"

0.472

12.0

0.157

4.0

0.027

0.68

HS3380-SP

3/4"

0.708

18.0

0.236

6.0

0.030

0.77

HS3382-SP

1"

0.945

24.0

0.315

8.0

0.035

0.90

HS3383-SP

1-1/2"

1.496

38.0

0.512

13.0

0.041

1.04

Note: Inside Diameters for Heat Shrink Tubing are measured as ROUND Tube, Not FLAT

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

3:1 Single wall heat shrink tubing is made from a specially formulated, cross-linked polyolefin. It offers excellent electrical, chemical, and physical properties. This tough, flexible, flame retardant tubing can be used for electrical insulation, wire bundling, lightweight harnessing, and wire strain relief in a variety of home, commercial, industrial and military applications. The flame retardant jacket of 3:1 single wall heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.

3:1 heat shrink tubing will slide easily over inline splices and connectors, and shrink down to 33% of its original diameter to fit snugly over any wire, hose or cable management project. it is an excellent way to terminate the ends of your Braided Sleeving, creating a tight, professional finish.

Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation

Note: Inside Diameters for Heat Shrink Tubing are measured as ROUND Tube, Not FLAT

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760



Expanded

Recovered

SKU #

Nominal

Inside Diameter

Inside Diameter

Minimum Wall Thickness

Size

in

mm

in

mm

in

mm

HS3371-SP

1/8"

0.118

3.0

0.039

1.0

0.019

0.50

HS3372-SP

3/16"

0.177

4.5

0.059

1.5

0.021

0.54

HS3374-SP

1/4"

0.235

6.0

0.078

2.0

0.023

0.59

HS3376-SP

3/8"

0.354

9.0

0.118

3.0

0.027

0.68

HS3378-SP

1/2"

0.472

12.0

0.157

4.0

0.027

0.68

HS3380-SP

3/4"

0.708

18.0

0.236

6.0

0.030

0.77

HS3382-SP

1"

0.945

24.0

0.315

8.0

0.035

0.90

HS3383-SP

1-1/2"

1.496

38.0

0.512

13.0

0.041

1.04

Product Manuals

Frequently Asked Questions

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Videos

Note: Inside Diameters for Heat Shrink Tubing are measured as ROUND Tube, Not FLAT
